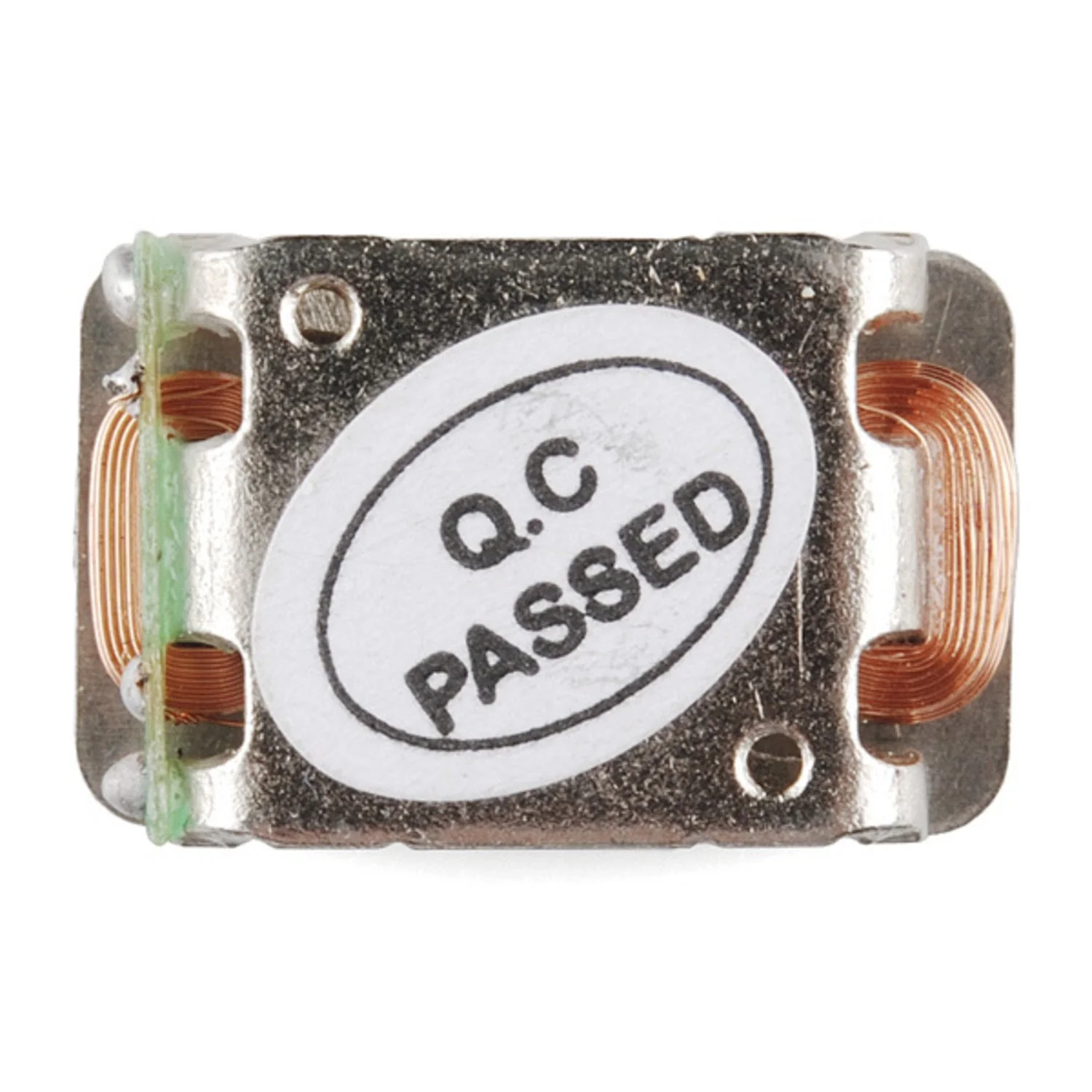

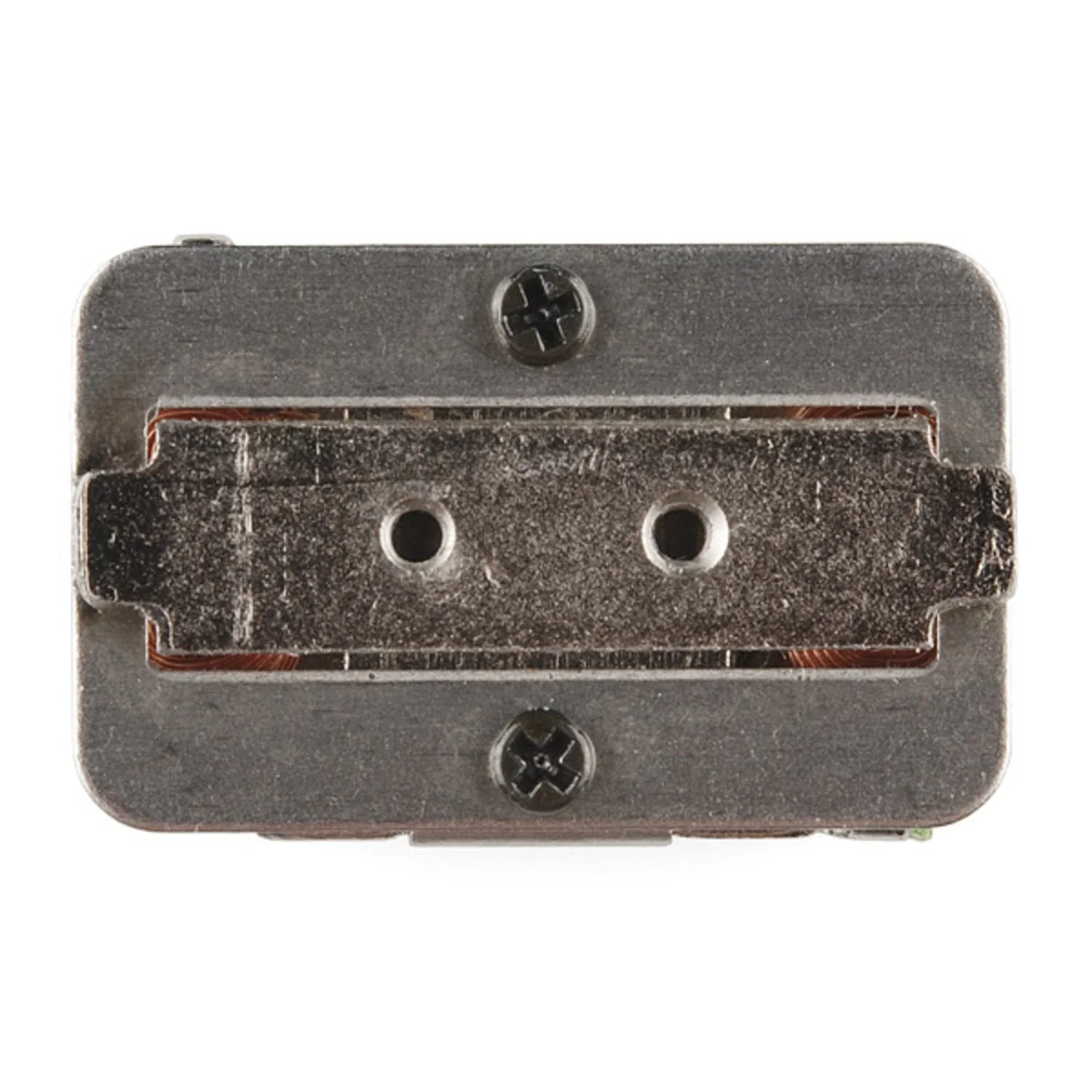

The Surface Transducer (Small) turns almost any surface into a speaker. Instead of a traditional cone, the voice coil is attached to a pad that conducts vibrations into whatever surface it's pressed against — tables, walls, enclosures, or panels.

Simply connect it to an audio source and place it firmly against a flat surface to produce sound. The transducer excites the surface, effectively turning it into a speaker diaphragm.

Key Features

• Surface-Driven Sound – Vibrates any flat surface to produce audio output
• Compact Size – Just 21.5 × 14.5 × 7.9 mm for discreet installation
• Wide Frequency Response – 300–19,000 Hz covers most of the audible range
• Low Impedance – 8 Ω (±5%) for compatibility with standard audio amplifiers

Specifications

• Impedance – 8 ±5% Ω
• Resonant Frequency – 16 ±0.5 kHz
• Max Operating Voltage – 12 Vpp
• Frequency Response – 300–19,000 Hz
• Rated Input – 1.0 W
• Maximum Input – 2.0 W
• Operating Temperature – −20 to +60 °C
• Dimensions – 21.5 × 14.5 × 7.9 mm

Ideal For

• Interactive art and sound installations
• Hidden or embedded speaker projects
• Musical instruments and resonance experiments
• IoT devices with audio feedback
