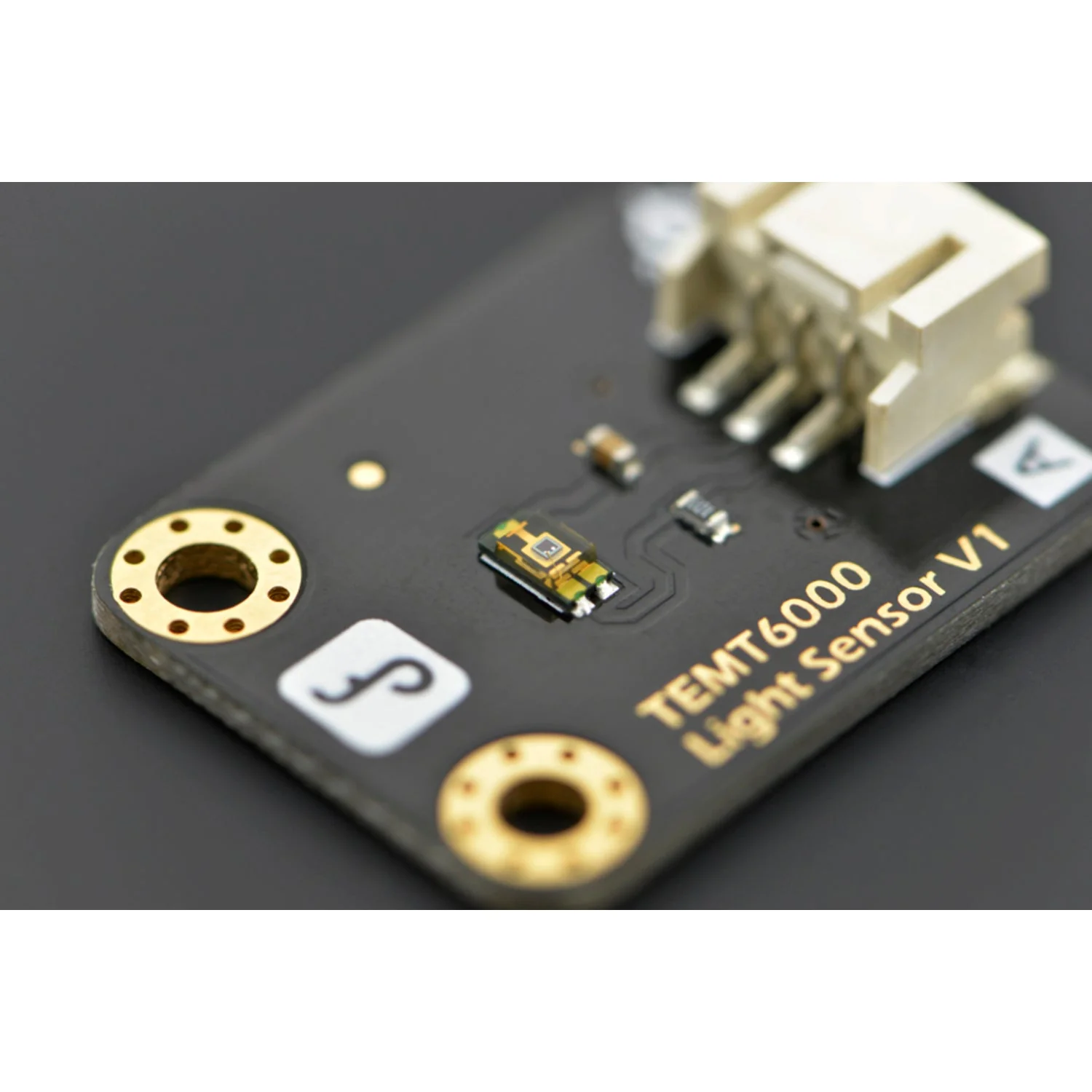

An analog ambient light sensor based on the TEMT6000 detector, which has a spectral response closely matching the human eye with very low IR sensitivity. It outputs an analog voltage proportional to the ambient light level, making it easy to read with any Arduino or microcontroller analog input.

Part of the DFRobot Gravity series, this sensor connects via a standard 3-pin Gravity interface for plug-and-play use with compatible shields and boards. Set a voltage threshold to trigger actions based on light levels in your projects.

Key Features

• TEMT6000 Detector – Spectral response closely matches the human eye
• Very Low IR Sensitivity – Accurate visible light measurement
• Analog Voltage Output – Scalable 0–5V output at VCC=5V
• Gravity Interface – Standard 3-pin connector for easy hookup

Specifications

• Supply Voltage – 3.3–5.5V DC
• Illumination Range – 1–1000 Lux
• Output – Analog voltage (0–5V at VCC=5V)
• Operating Temperature – -40°C to 85°C
• Module Size – 30 × 22mm

Ideal For

• Ambient light level monitoring
• Automatic lighting control systems
• Light-responsive Arduino projects
• Environmental sensing and data logging

Package Contents

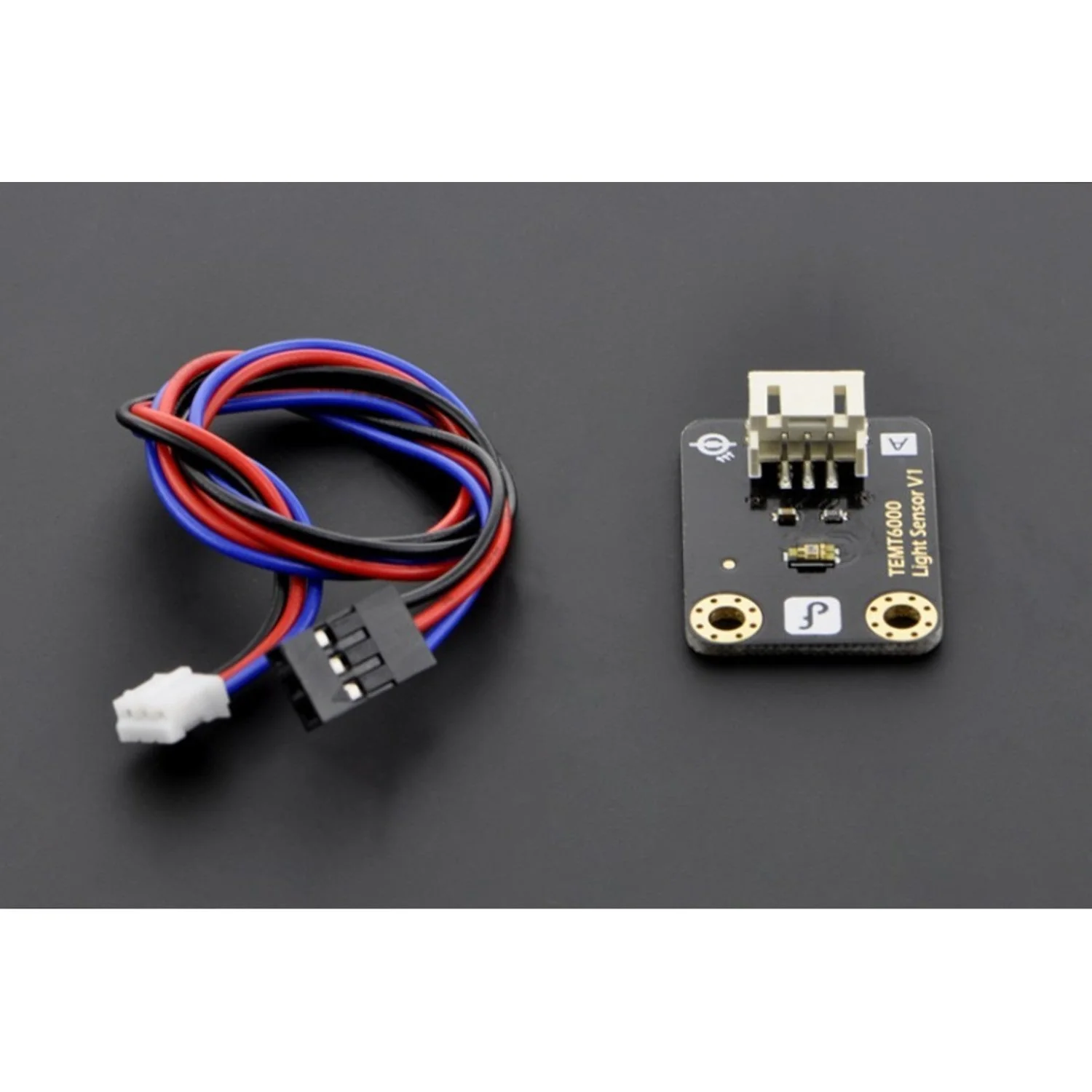

• 1× TEMT6000 Ambient Light Sensor Module
• 1× Analog Sensor Cable

Resources

• Product Wiki (DFRobot)
• TEMT6000 Datasheet
