SparkFun Rotary Switch Breakout

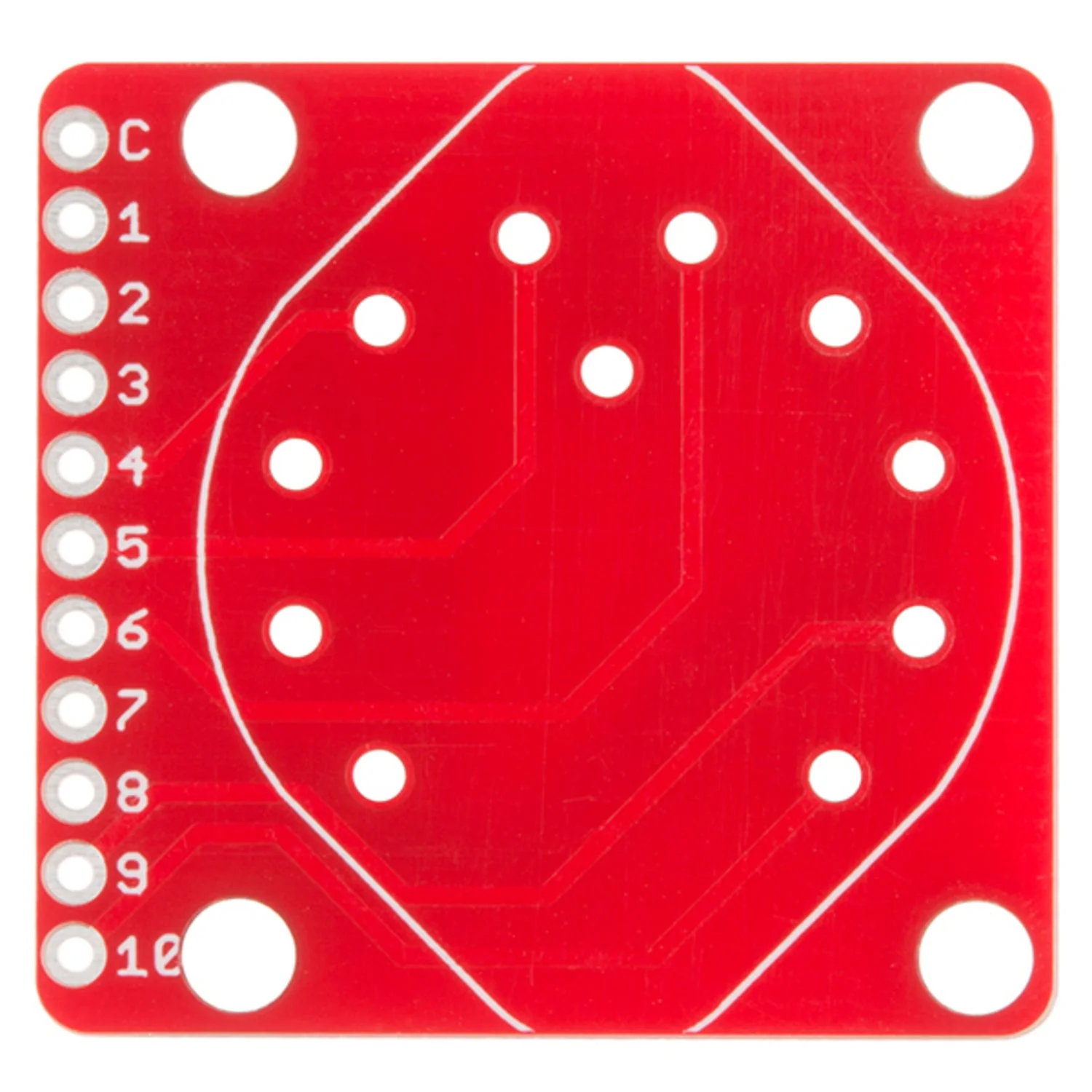

The SparkFun Rotary Switch Breakout makes it easy to integrate a 10-position rotary switch into your project without designing a custom PCB. Simply solder the switch onto the breakout board using the silkscreen as a guide, and each position becomes accessible via standard 0.1″-spaced pins — ready for breadboards or hookup wire.
The board breaks out all 12 connections: the common pin (C) plus positions 1 through 10, giving you clean access to every switch position.
Key Features
- 0.1″ Pin Spacing – Breadboard and hookup wire compatible
- All Positions Broken Out – Common pin plus positions 1–10
- Silkscreen Guide – Clear markings for easy switch alignment and soldering
- Simple Integration – No custom PCB required
Ideal For
- Prototyping multi-position selector circuits
- Adding mode or channel selection to projects
- Breadboard-based development with rotary switches
Package Contents
- 1× SparkFun Rotary Switch Breakout Board
