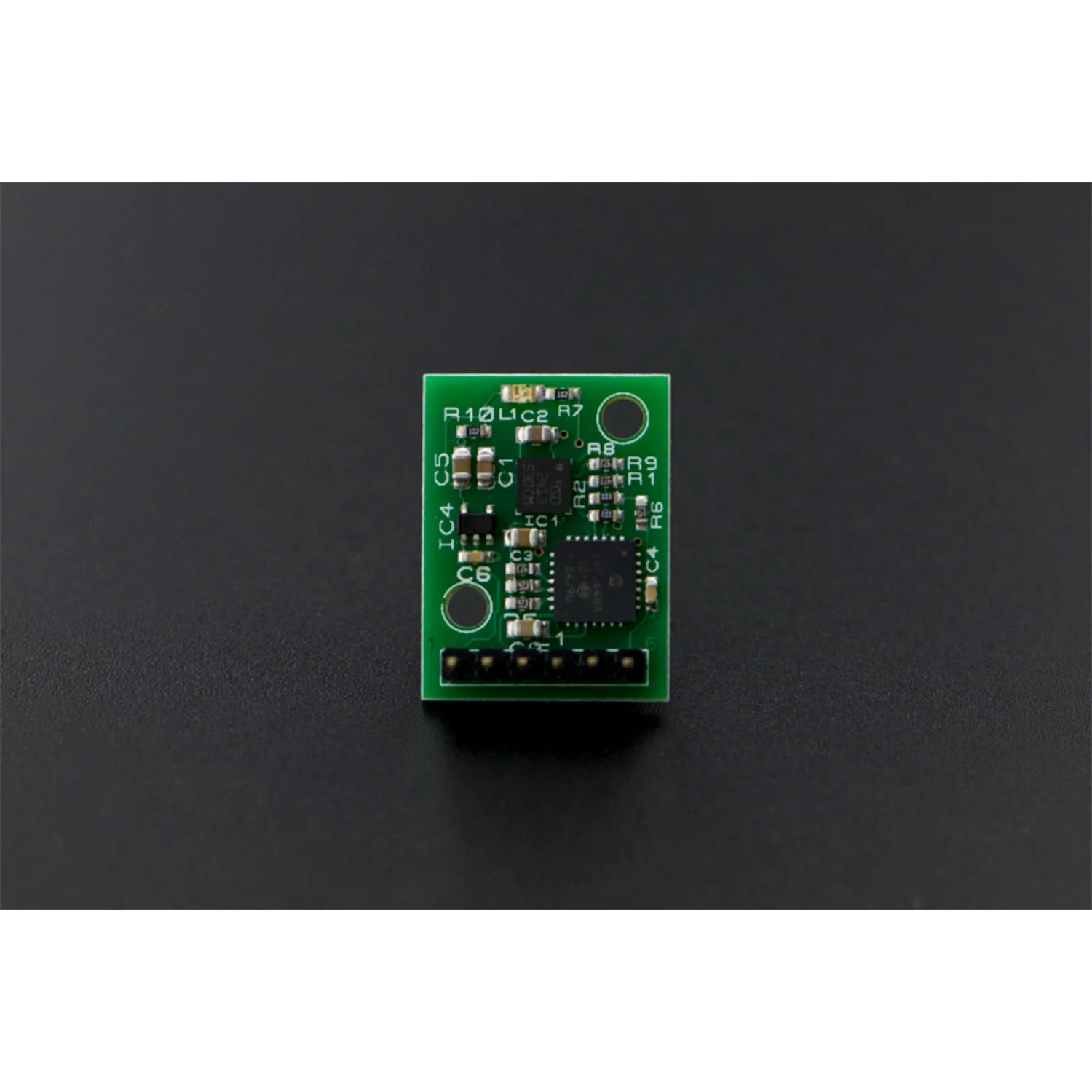

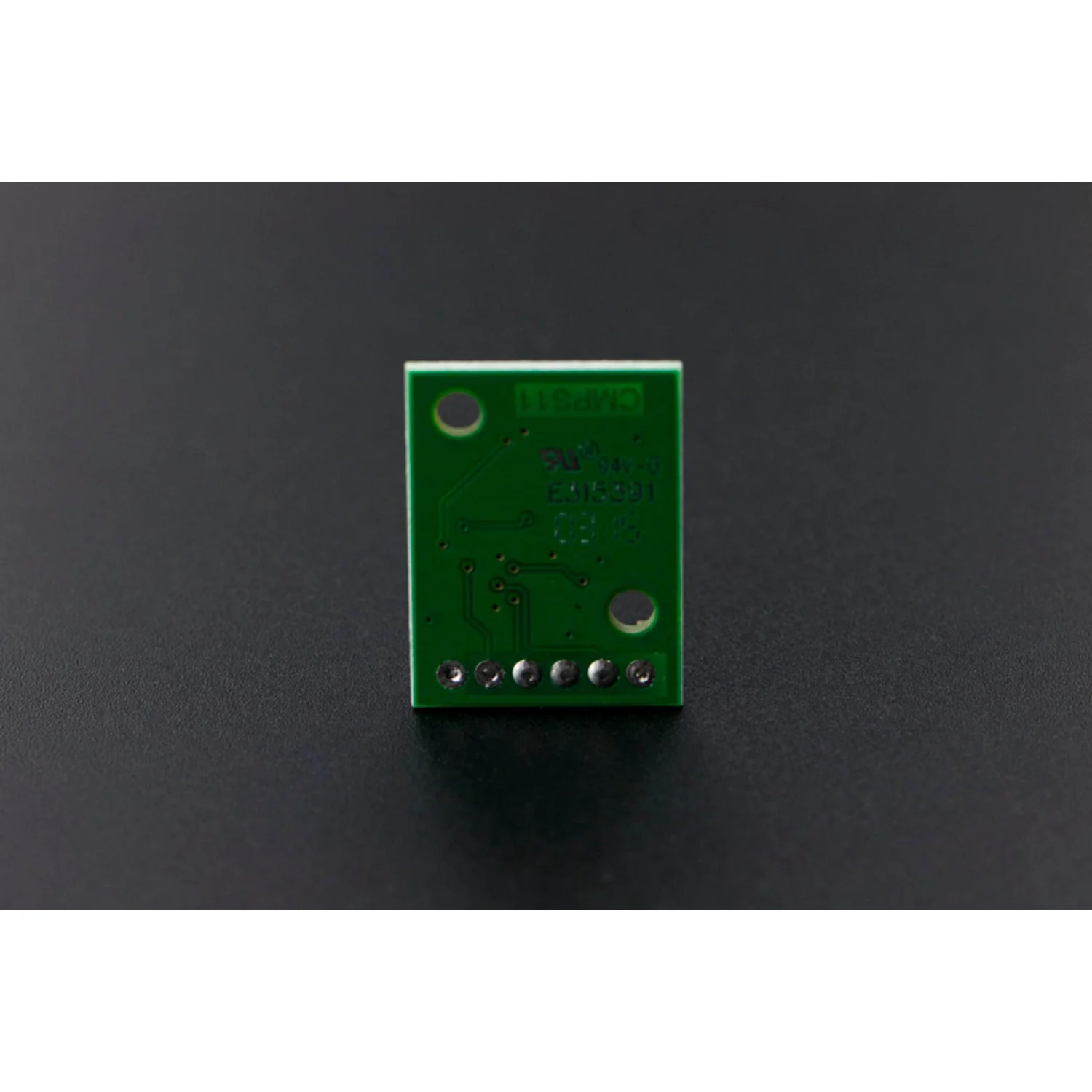

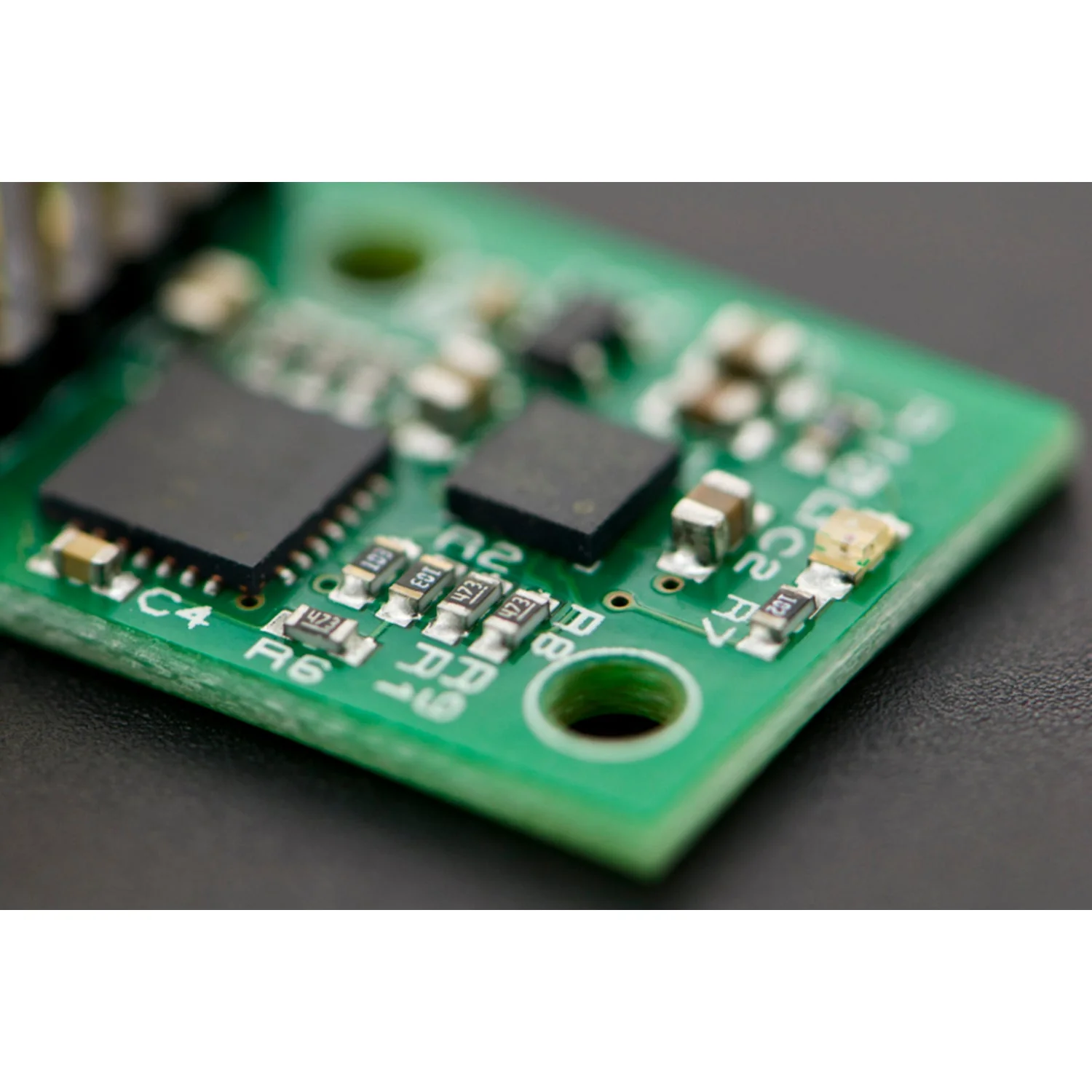

The CMPS11 is a 3rd-generation tilt-compensated magnetic compass module that combines a 3-axis magnetometer, 3-axis gyroscope, and 3-axis accelerometer. An onboard Kalman filter fuses gyro and accelerometer data to remove errors caused by tilting, delivering accurate heading readings regardless of orientation.

The module outputs heading as 0–3599 (representing 0–359.9°) or 0–255, and supports raw data output from all three sensors including x, y, z magnetic field components, pitch, and roll. Communication is via I2C or serial interface.

Key Features

• Tilt Compensated – Kalman filter removes tilt-induced heading errors
• 9-DOF Sensor Fusion – 3-axis magnetometer, gyroscope, and accelerometer
• 0.1° Resolution – High-precision heading output
• Better than 2% Accuracy – After calibration
• Dual Interface – I2C (up to 100 kHz) or serial (9600/19200/38400 baud)
• 3.3V and 5V Tolerant – Works with 3.6–5V supply
• Lightweight – Just 10 g
• Compact – 24.5 × 18.5 × 4.5 mm

Ideal For

• Aircraft and drone navigation
• Balancing robots
• Indoor inertial navigation systems
• Altimeter and orientation projects
• Human-computer interaction (HCI)

Package Contents

• 1× CMPS11 Tilt Compensated Magnetic Compass module

Resources

• CMPS11 User Manual
