The SparkFun RFID Reader Breakout converts the 2mm pin spacing of ID-series RFID readers to breadboard-friendly 0.1" headers. Compatible with the ID-3LA, ID-12LA, and ID-20LA readers, this board lets you solder the reader directly or use 2mm sockets for a removable connection.

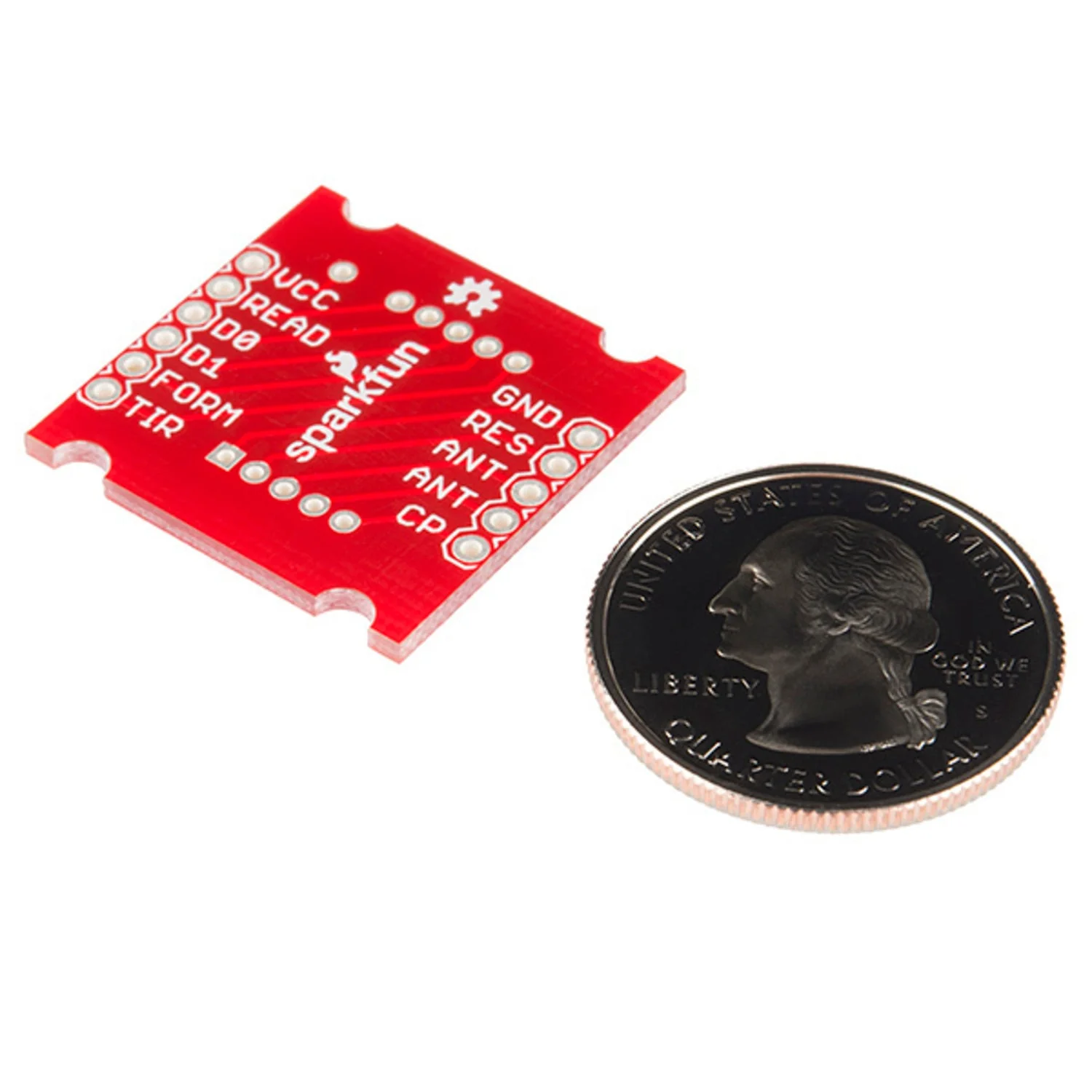

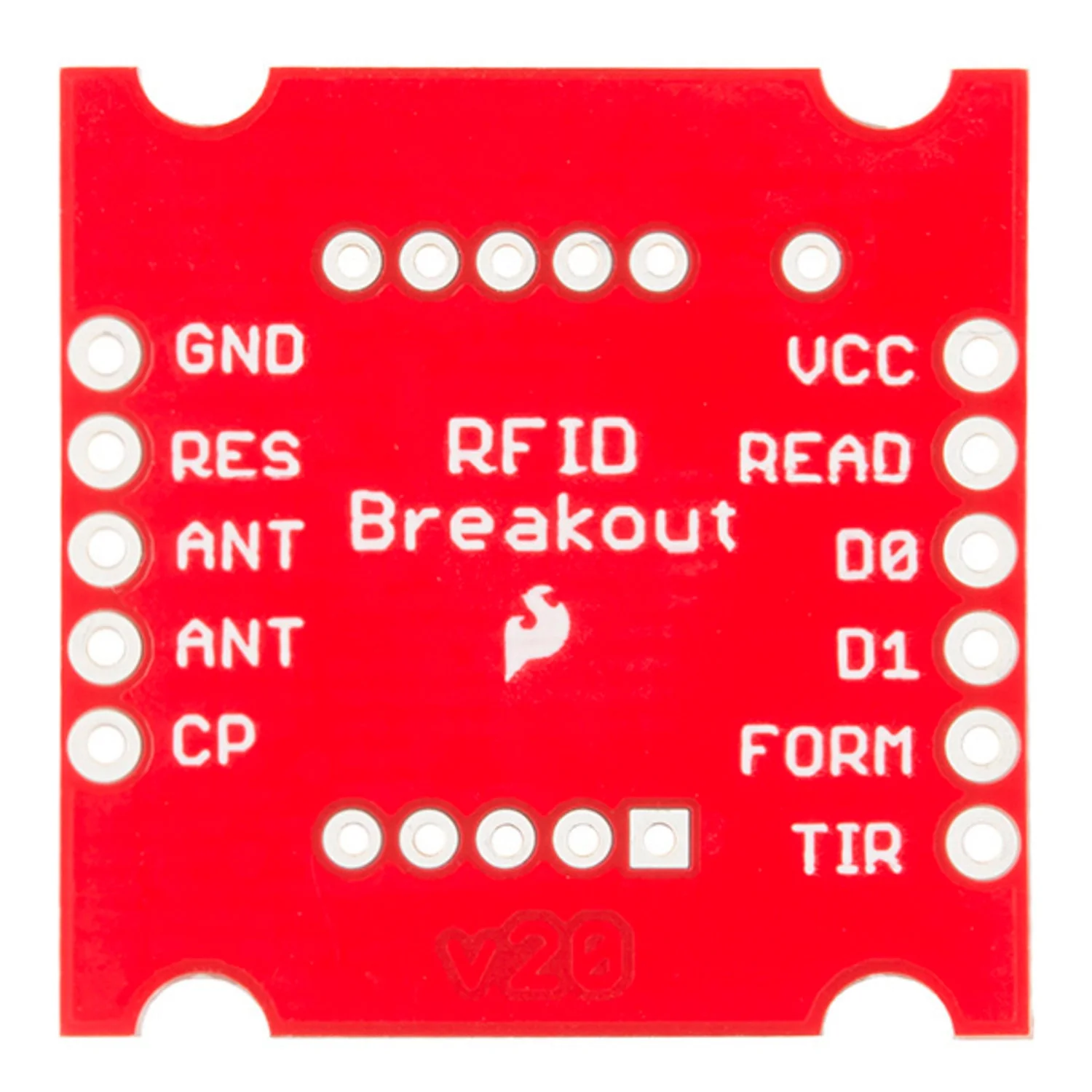

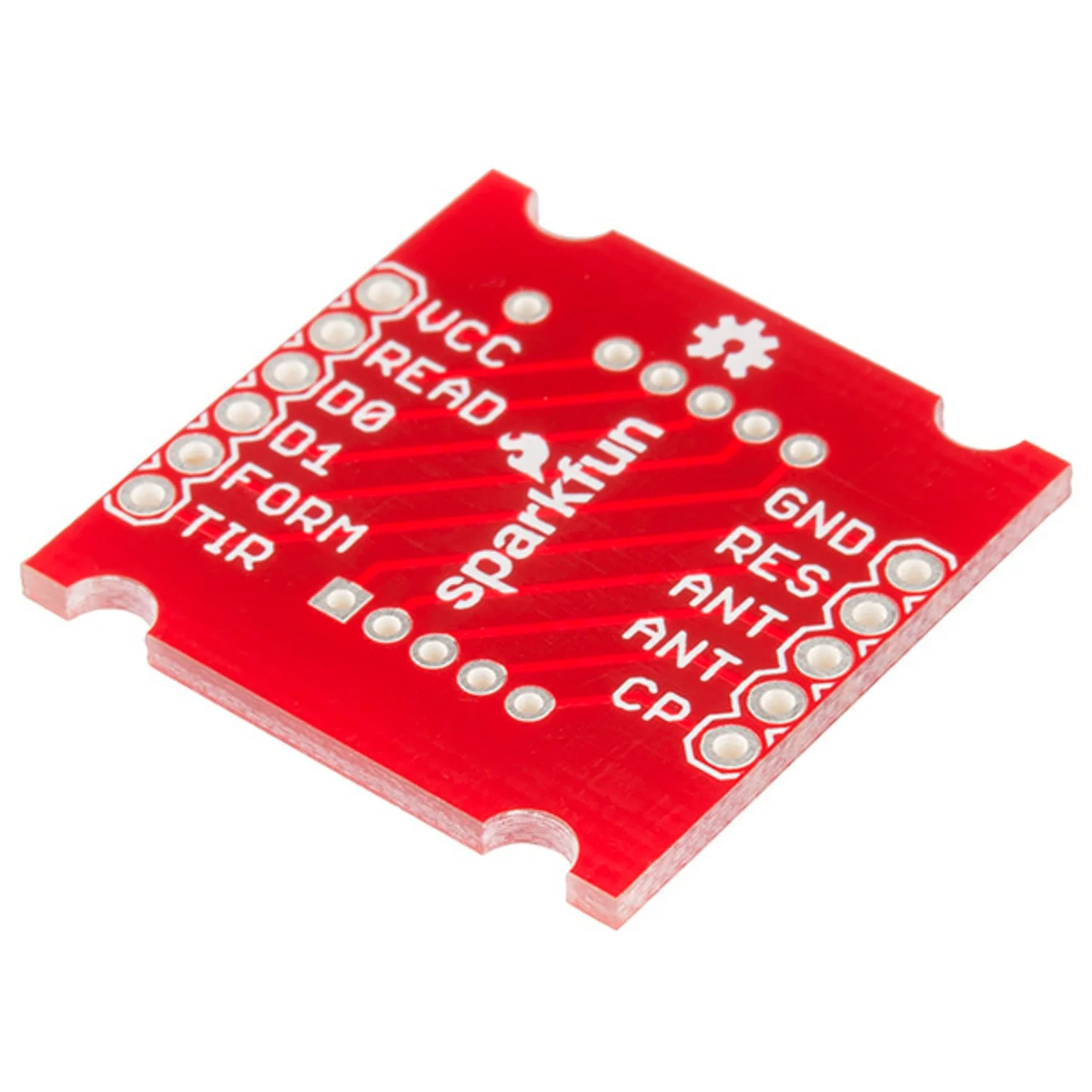

Every pin is broken out including VCC, READ, D0, D1, FORM, TIR, CP, both ANT pins, RES, and GND. The breakout board fits flush within the underside of the ID-12LA, and four half-mounting holes make it easy to secure in your enclosure or project.

Key Features

• Pin Conversion – Converts 2mm reader pins to 0.1" breadboard-compatible headers
• Full Breakout – All reader pins accessible: VCC, READ, D0, D1, FORM, TIR, CP, ANT, RES, GND
• Compatible Readers – ID-3LA, ID-12LA, and ID-20LA
• Mounting – Four half-mounting holes for secure installation
• Flush Fit – Board edges fit within the underside of the ID-12LA

Ideal For

• RFID access control and identification projects
• Breadboard prototyping with ID-series readers
• Arduino and microcontroller RFID applications

Package Contents

• 1× SparkFun RFID Reader Breakout Board

Resources

• Hookup Guide
• Schematic (PDF)
• Eagle Files (ZIP)
• GitHub Design Files
