A temperature-controlled, anti-static soldering station with adjustable temperature from 200°C to 480°C. The AT936b uses a low-voltage DC heating element for anti-static performance with no electrical leakage or interference, making it suitable for sensitive electronics work.

Features a temperature locking system to prevent accidental changes, and accepts standard 900M-series interchangeable tips for versatility across different soldering tasks. The ergonomic handle is designed for comfortable extended use.

Key Features

• Temperature Controlled – Adjustable 200–480°C with ±5°C static stability

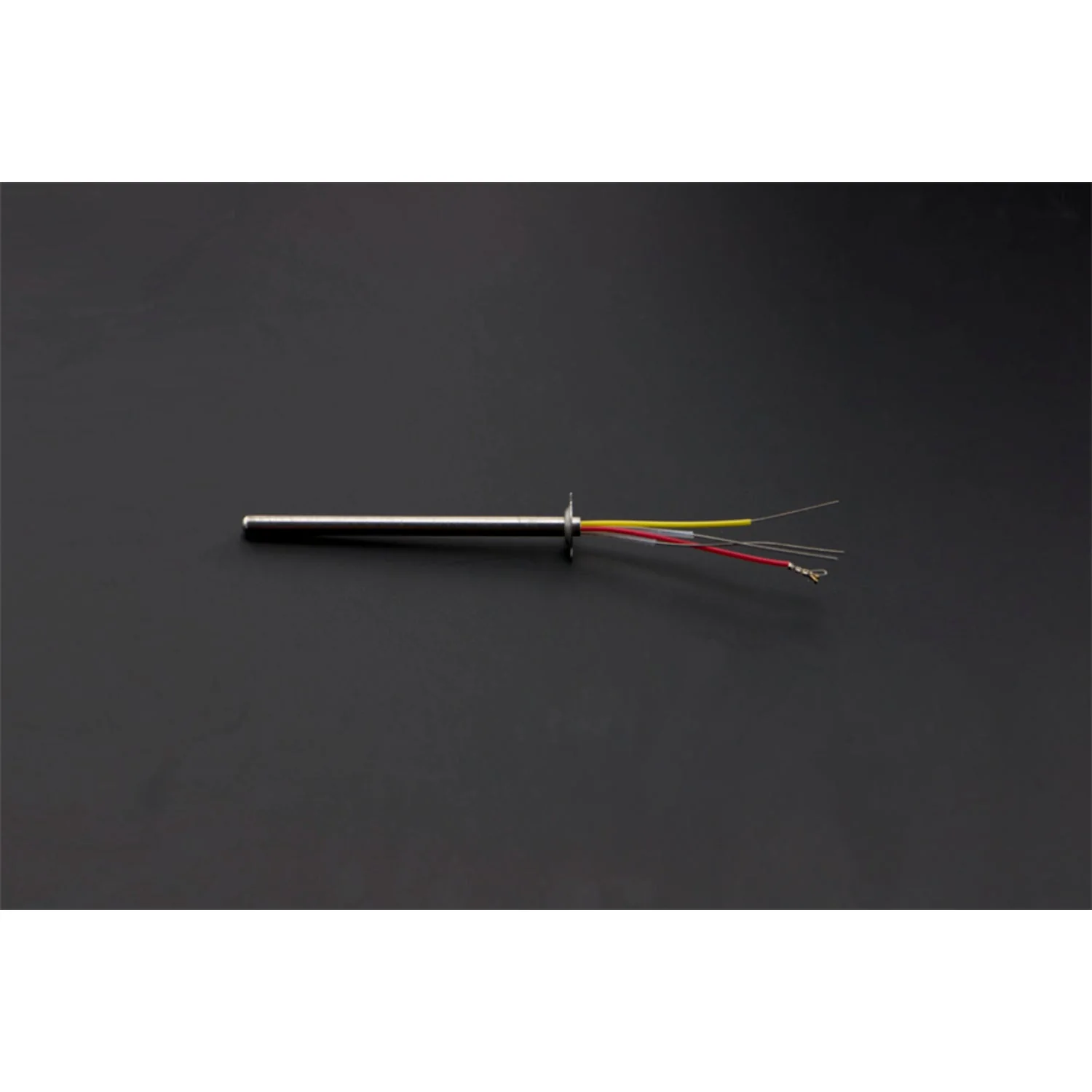

• Anti-Static Design – Low-voltage DC heating element, <0.5 mV tip leakage

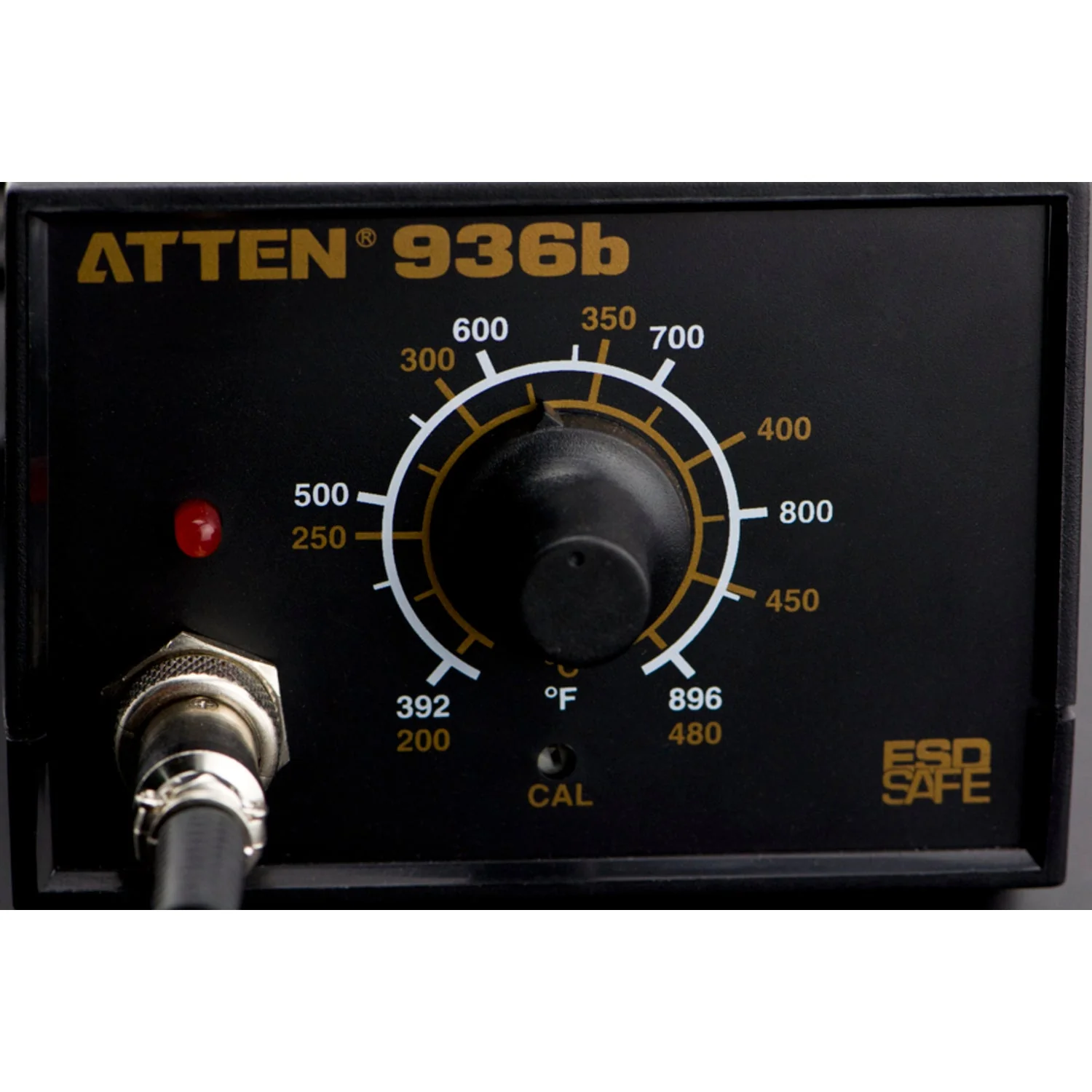

• Temperature Lock – Prevents accidental temperature changes
• 60 W Power – Fast heat recovery for lead-free soldering

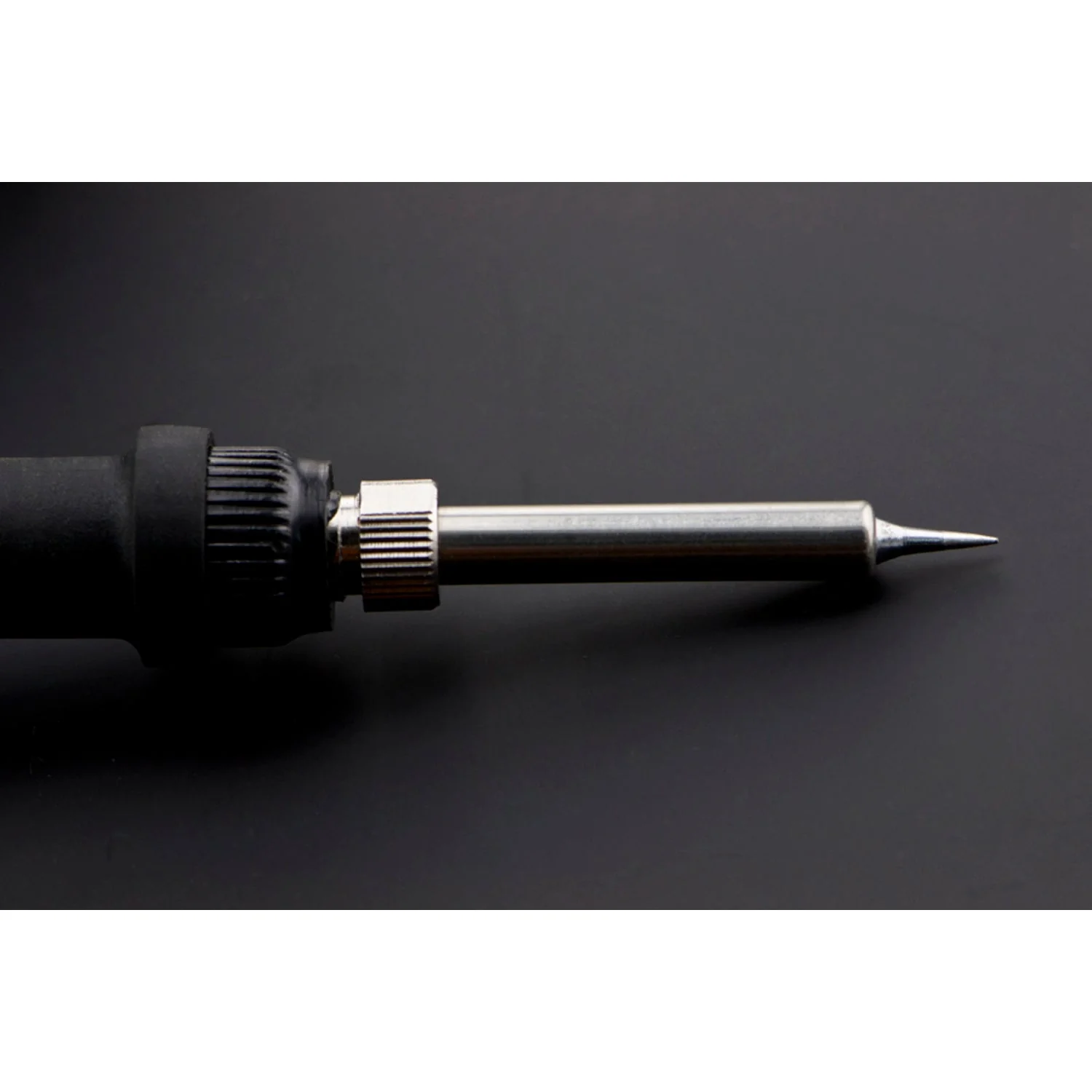

• 900M Tip Compatible – Standard interchangeable tips for various applications
• Ergonomic Handle – Comfortable for long soldering sessions

Specifications

• Input Voltage: 220 V AC ± 10%, 50 Hz
• Power Consumption: 60 W
• Temperature Range: 200–480°C
• Temperature Stability: ±5°C (static)
• Tip Leakage Voltage: <0.5 mV
• Standard Tip: 900M series
• Dimensions: 310 × 170 × 120 mm
• Weight: 1.7 kg

Ideal For

• General through-hole and SMD soldering
• Lead-free soldering work
• Electronics workshops and workbenches
• Hobbyist and professional use

Package Contents

• 1× AT936b Soldering Station (with iron and holder)
