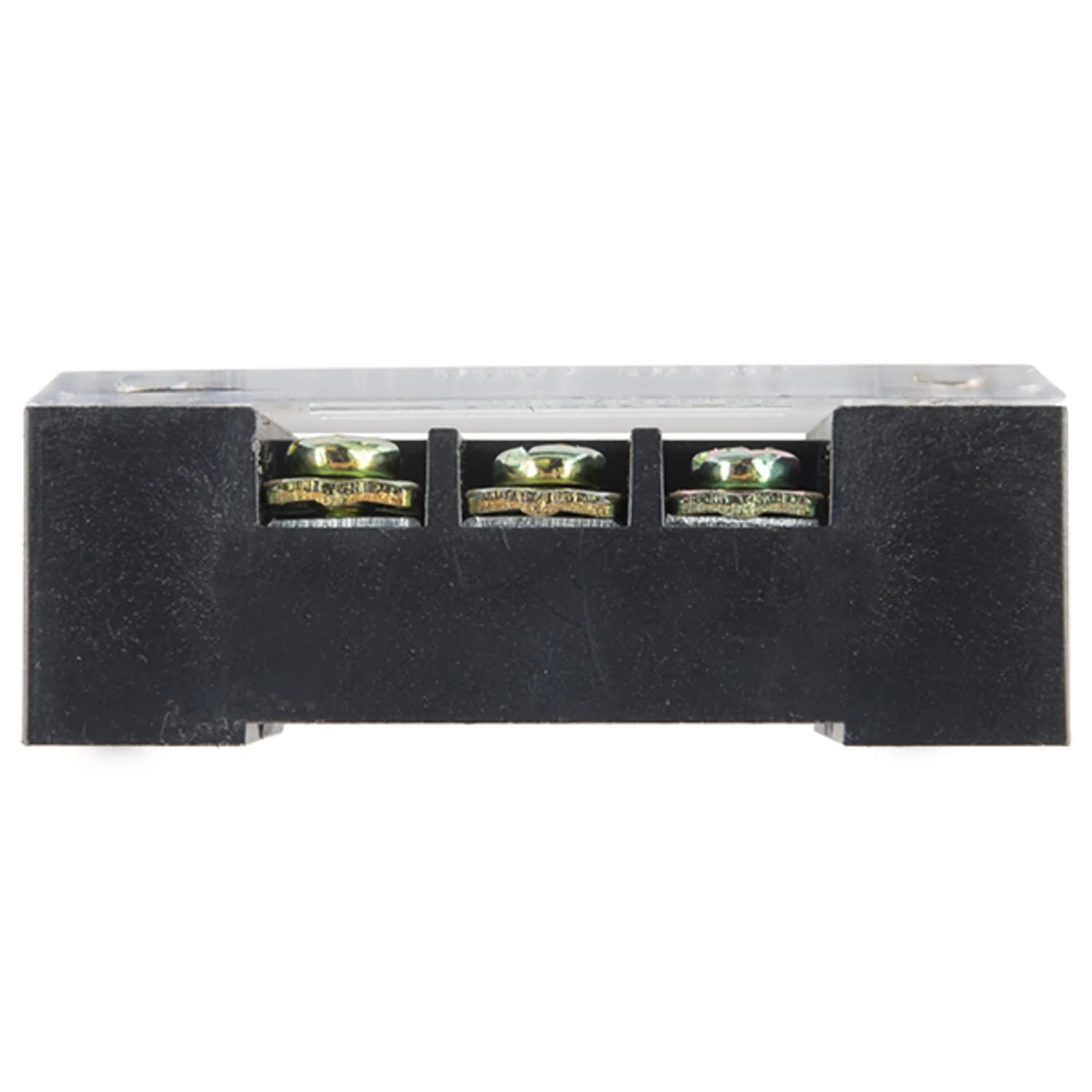

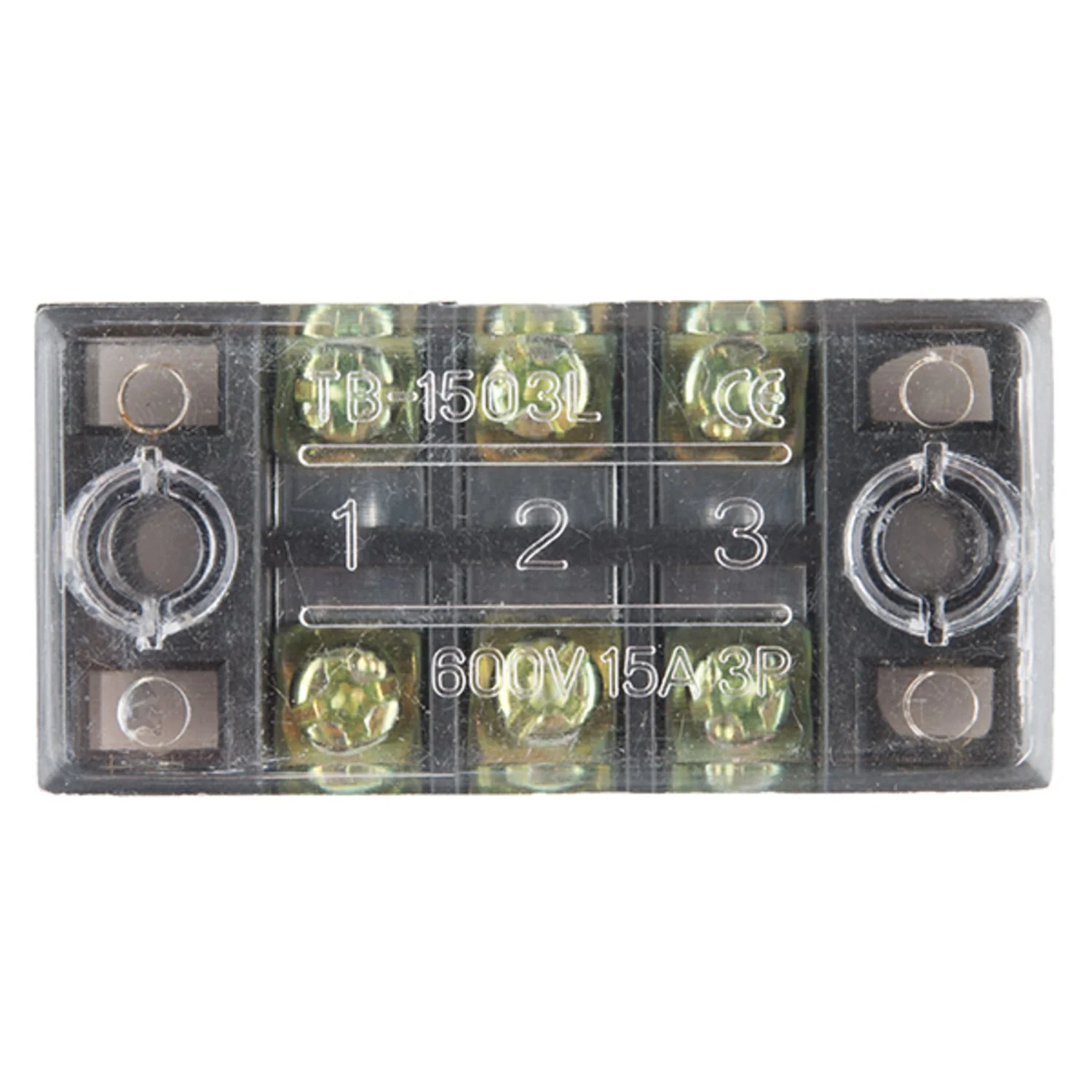

A 3-position screw terminal block for connecting wires to a single junction point. Each position accepts a wire that is secured with a screw clamp — no soldering, twisting, or crimping required. Wiring can be adjusted or reconfigured at any time by simply loosening the screws.

Key Features

• 3 Positions – Three independent screw-clamp terminals
• 15A / 600V Rating – Suitable for high-current and high-voltage connections
• 10mm Screw Pitch – Standard spacing between terminals
• Tool-Free Reconfiguration – Loosen screws to adjust wiring at any time

Specifications

• Positions – 3
• Max Current – 15A
• Max Voltage – 600V
• Screw Pitch – 10mm
• Part Number – TB-1503

Package Contents

• 1× 3-Position Screw Terminal Block

Resources

• Dimensional Drawing
