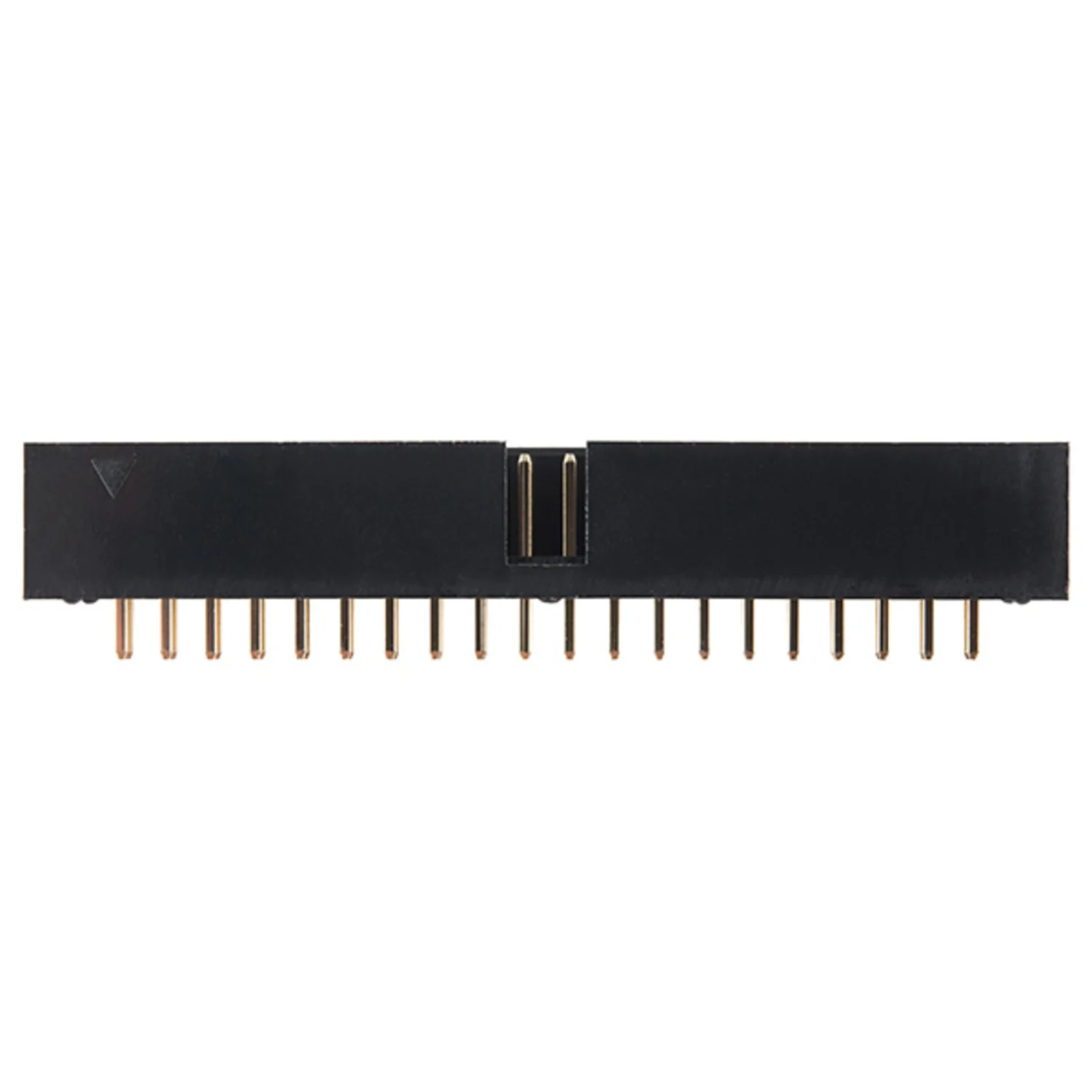

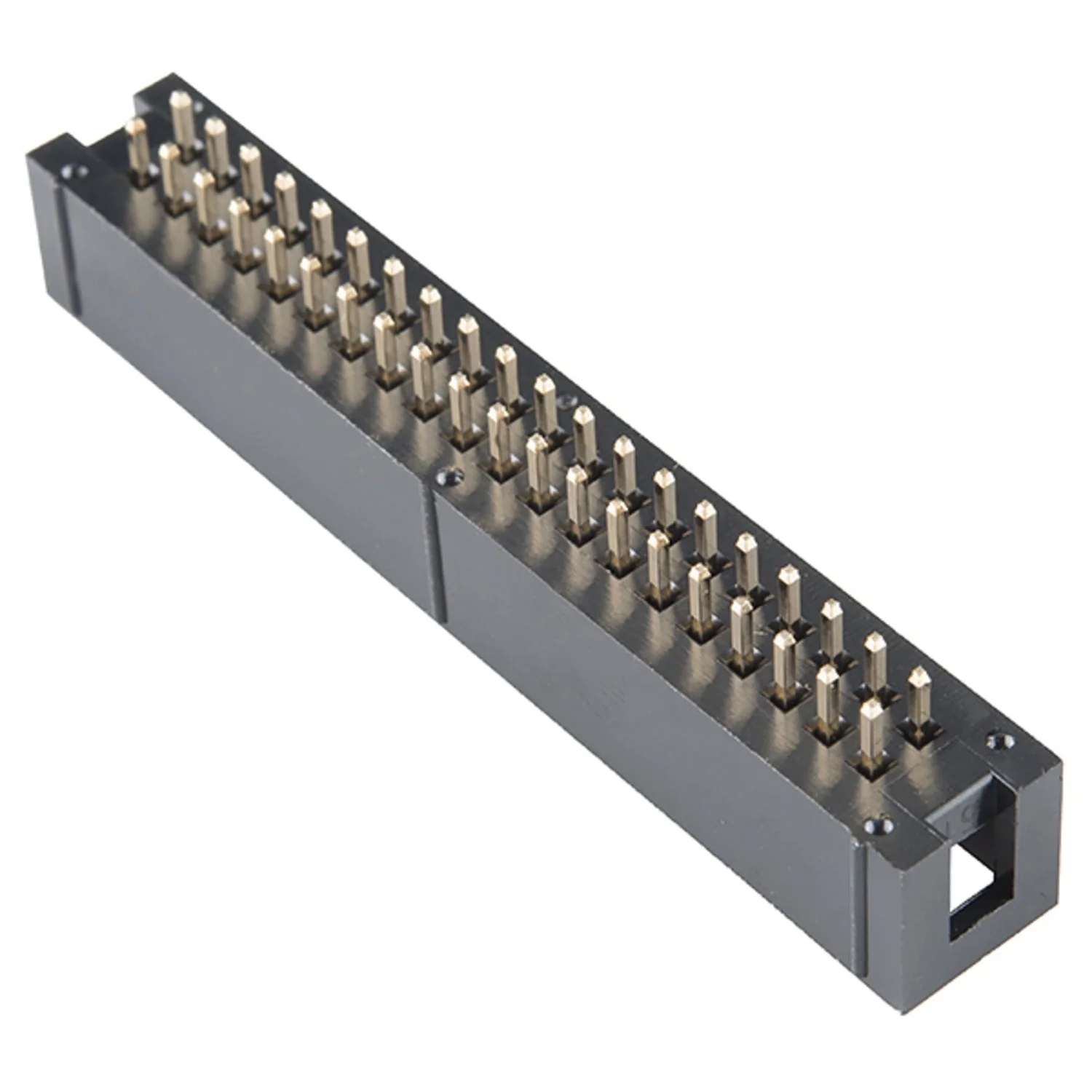

A 2×20 shrouded (boxed) header designed to match the Raspberry Pi GPIO pinout. It provides a keyed, polarised connection point so you can run a ribbon cable from your Pi's GPIO to a breakout board, HAT prototype, or custom PCB without the risk of plugging in backwards.

The through-hole header has 40 pins on a standard 2.54 mm (0.1″) pitch and is compatible with all 40-pin Raspberry Pi models (Pi 2, 3, 4, 5, and Zero).

Key Features

• 2×20 Pin Layout – Matches the Raspberry Pi 40-pin GPIO header
• Shrouded & Keyed – Polarised connector prevents reverse insertion
• 2.54 mm (0.1″) Pitch – Standard breadboard and perfboard spacing
• Through-Hole – Solderable to custom PCBs and breakout boards

Ideal For

• Raspberry Pi breakout and prototyping boards
• Ribbon cable connections to GPIO
• Custom HAT and add-on board designs

Package Contents

• 1× 2×20 Shrouded Header

Resources

• Datasheet (PDF)
