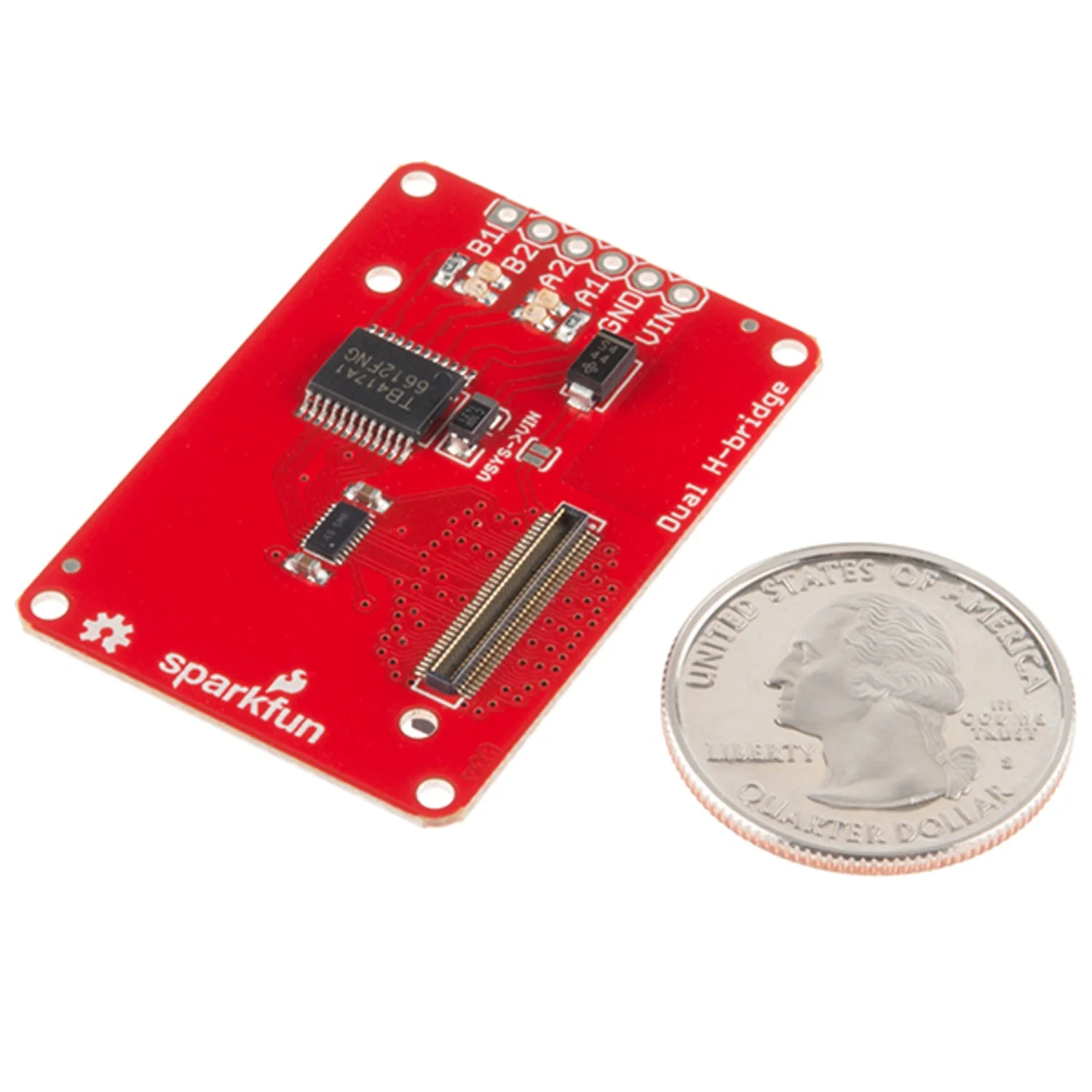

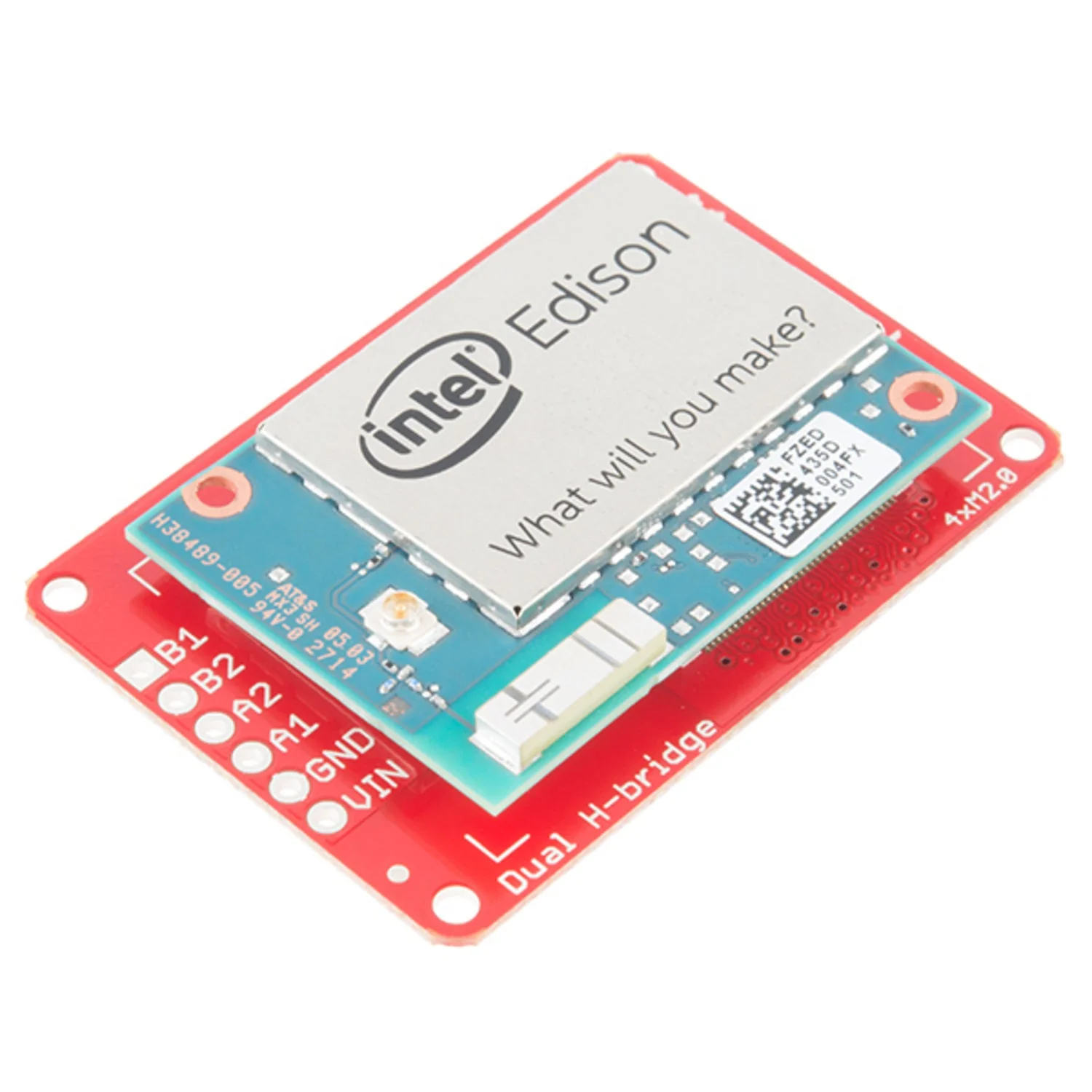

The SparkFun Dual H-Bridge Block adds DC motor control to the Intel Edison platform. It can drive two DC motors independently at voltages from 2.7V to 15V with up to 1A per channel, making it suitable for small robotics and motorised projects built around the Edison.

The block is electrically isolated from the Edison via a logic level converter, ensuring safe operation. External motor power is supplied through the VIN and GND headers. It connects to the Edison via the standard 70-pin Hirose connector and can be stacked with other Edison Blocks.

Key Features

• Dual H-Bridge – Independent control of two DC motors
• Wide Voltage Range – Motor supply from 2.7V to 15V
• 1A Per Channel – Suitable for small DC motors
• Logic Level Isolated – Level converter protects the Edison from motor noise
• Stackable Design – Standard Edison Block form factor with 70-pin connector

Specifications

• Motor Channels: 2
• Motor Voltage: 2.7–15V (external supply via VIN/GND headers)
• Motor Current: Up to 1A per channel
• Interface: Intel Edison 70-pin Hirose connector
• Isolation: Logic level converter between Edison and motor driver

Ideal For

• Edison-powered robotics and motorised platforms
• Dual DC motor control projects
• IoT devices with motor actuation

Package Contents

• 1× SparkFun Dual H-Bridge Block for Intel Edison
