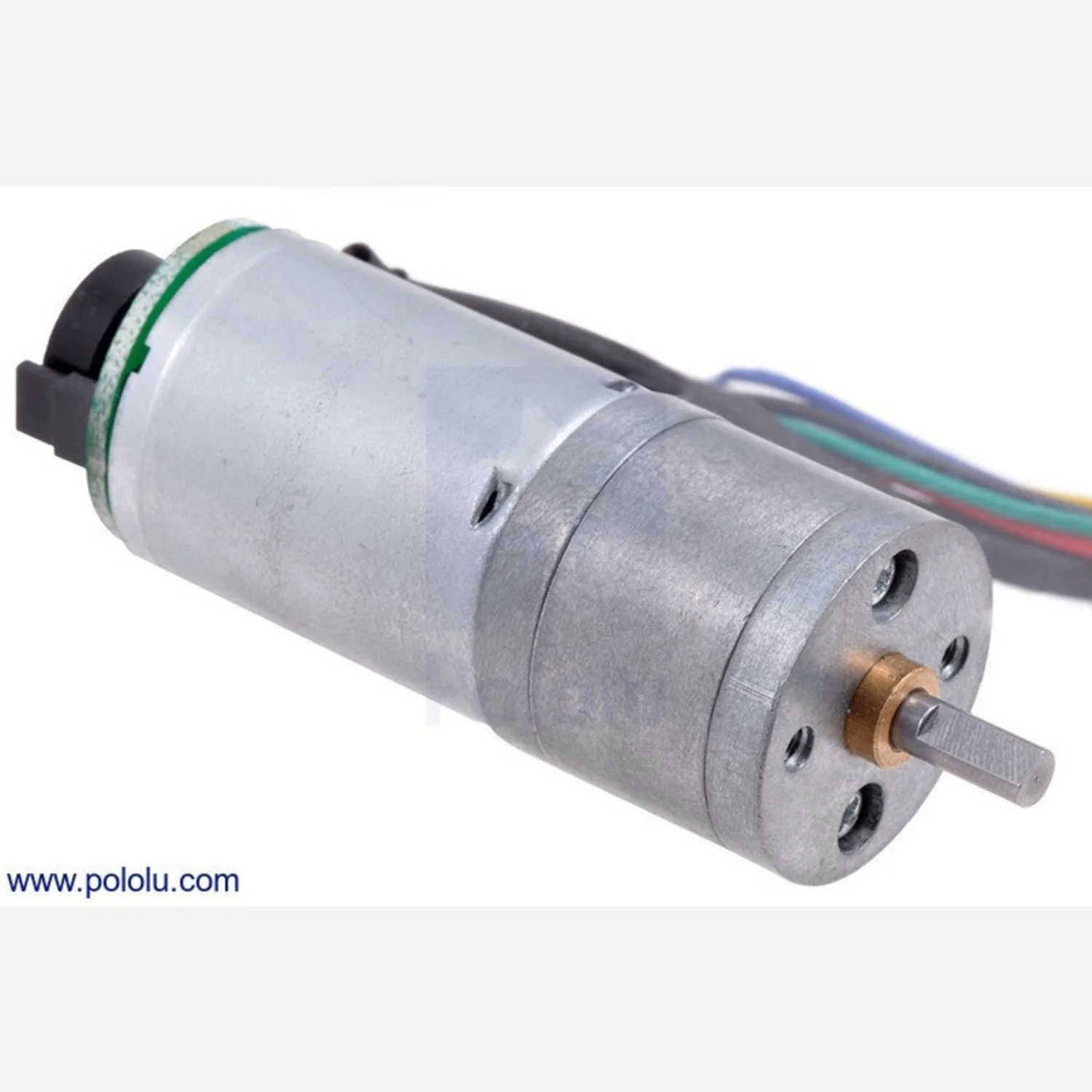

A high-power 12V brushed DC gearmotor from Pololu's 25D mm metal gearmotor range. The 46.85:1 metal spur gearbox delivers 220 RPM no-load speed with up to 15 kg·cm of stall torque, making it well suited for robotics drive systems and mechanisms requiring moderate speed with strong torque.

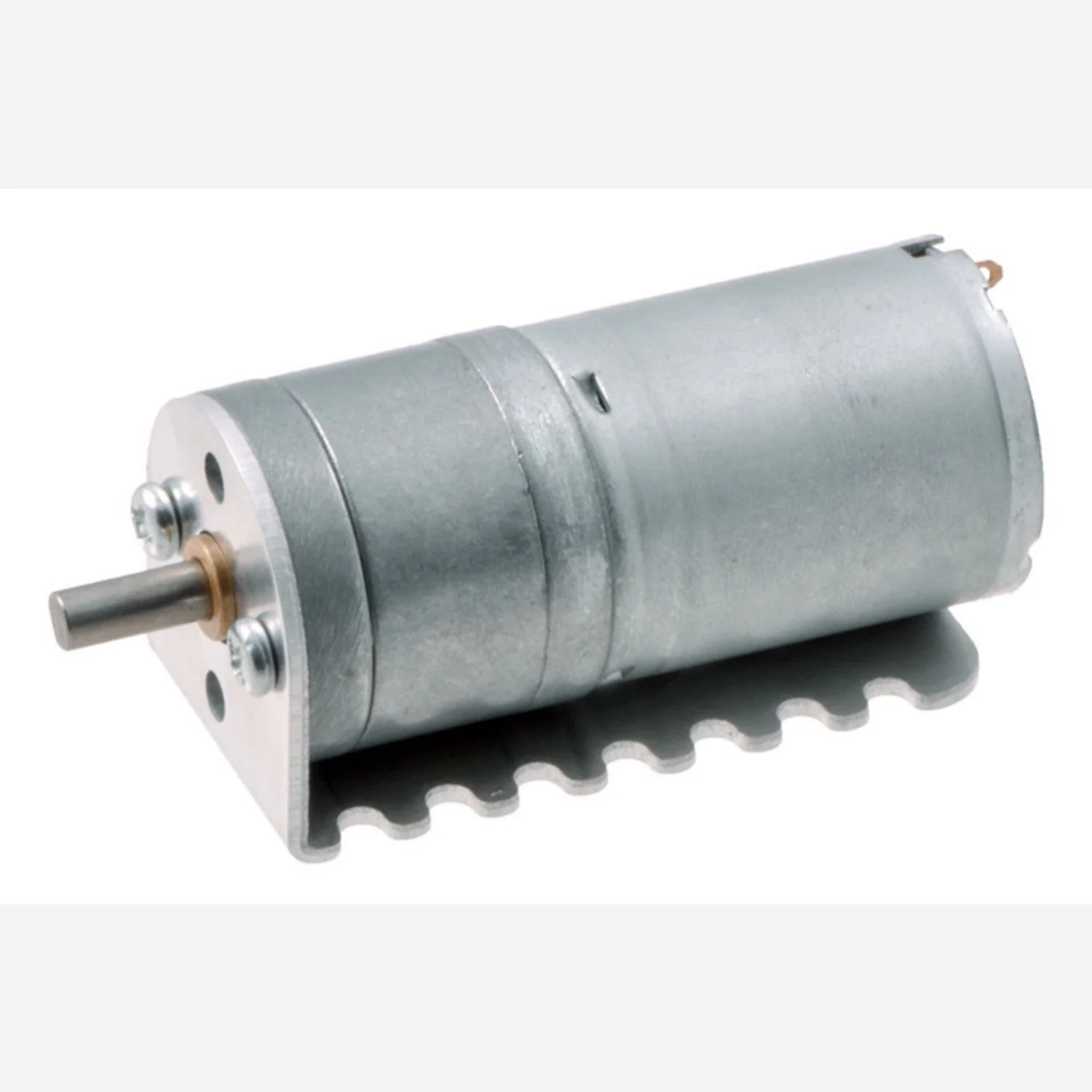

The cylindrical form factor (just under 25 mm diameter) and 4 mm D-shaped output shaft allow easy mounting with standard Pololu 25D brackets and hubs. The output shaft extends 12.5 mm from the gearbox face plate.

Key Features

• 46.85:1 Gear Ratio – Metal spur gearbox for durability under load
• High-Power Motor – 12V brushed DC motor with strong torque output
• 220 RPM No-Load – Good balance of speed and torque
• 15 kg·cm Stall Torque – Sufficient for driving robot wheels and mechanisms
• 4 mm D-Shaft Output – 12.5 mm extension, compatible with standard hubs and couplers
• Compact 25D Form Factor – Under 25 mm diameter cylindrical body

Specifications

• Operating Voltage: 12V
• Gear Ratio: 46.85:1
• No-Load Speed: 220 RPM
• No-Load Current: 250 mA
• Stall Torque: 15 kg·cm (210 oz·in)
• Stall Current: 5.0A
• Output Shaft: 4 mm D-shaped, 12.5 mm long
• Motor Diameter: ~25 mm
• Motor Type: HP (High Power)

Ideal For

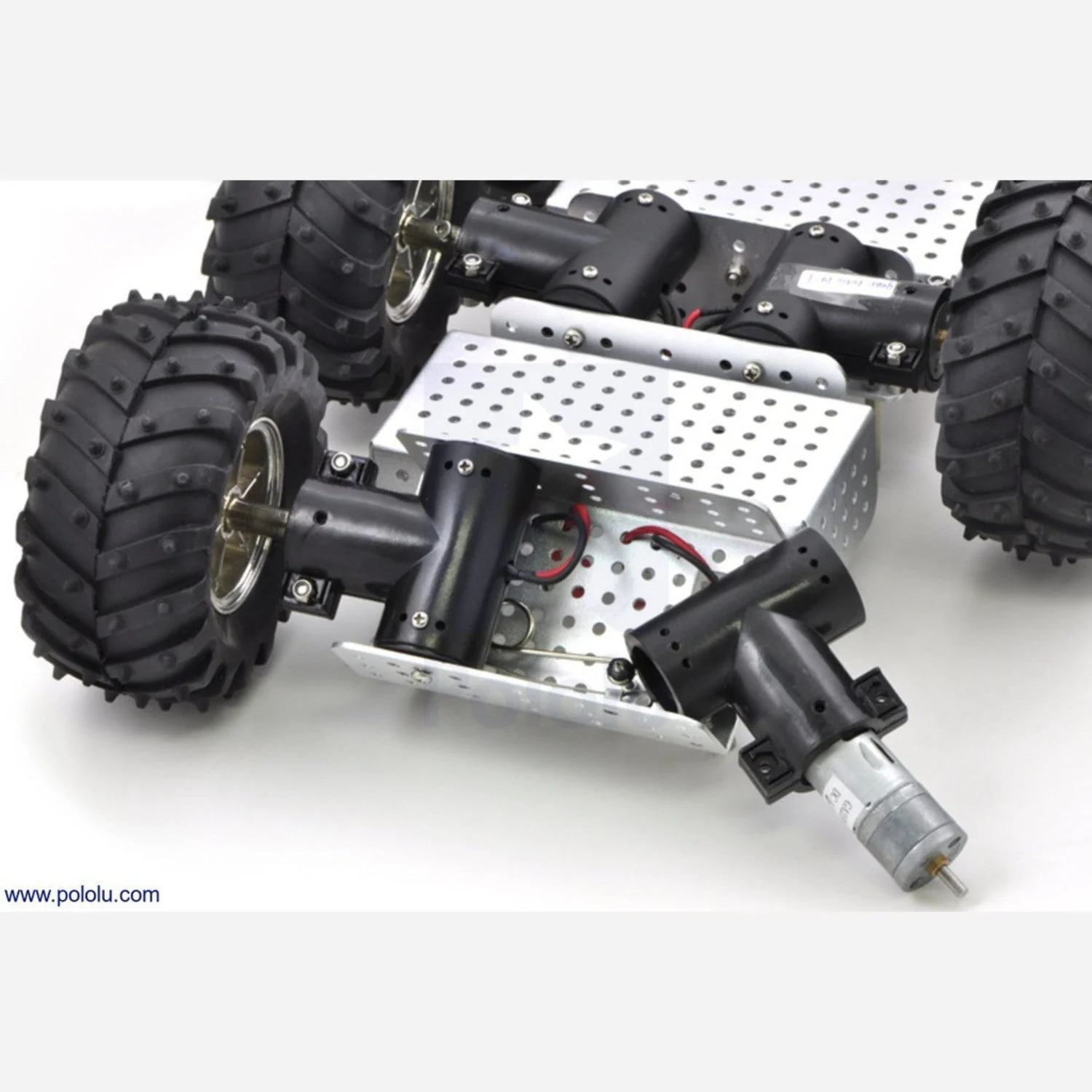

• Robot drive systems and wheeled platforms
• Motorised mechanisms and actuators
• Conveyor and positioning systems
• Projects requiring moderate speed with high torque

Package Contents

• 1× 47:1 Metal Gearmotor 25Dx52L mm HP 12V
