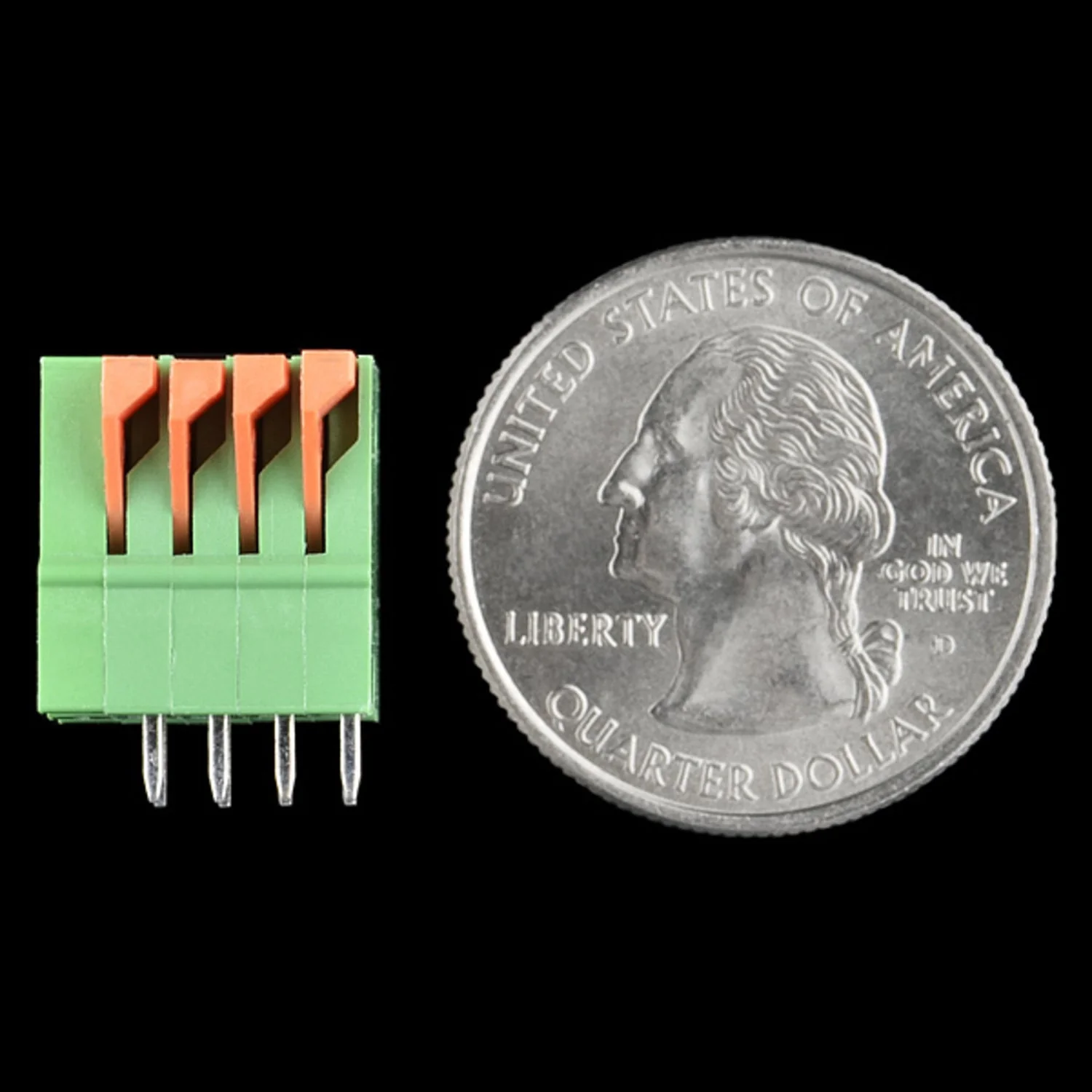

Spring Terminals - PCB Mount (4-Pin)
These 4-pin PCB-mount spring terminals provide a quick, tool-free way to connect bare wires to your circuit board. Simply press the spring arm to open the aperture, insert the wire, and release — the wire is held firmly in place.
With standard 0.1" (2.54mm) pin spacing, these terminals insert directly into perfboard and protoboard. They offer higher current capacity and more reliable connections than breadboard or female header connections.
Specifications
- Positions: 4 pins
- Pin Spacing: 0.1" (2.54mm) standard
- Voltage Rating: Up to 150V
- Current Rating: Up to 2A
- Wire Gauge: 26 to 20 AWG
- Mount Type: PCB through-hole
Ideal For
- Prototyping with perfboard and protoboard
- Quick wire connections without soldering
- Projects requiring frequent wire changes
