The RS232 Shield V2 adds a standard DB9 RS232 serial port to your Arduino, allowing direct communication with industrial equipment, automation systems, and legacy serial peripherals. It uses a MAX232 level shifter to convert between the Arduino's TTL logic and RS232 voltage levels.

This version lets you select any two pins from D0–D7 as software serial ports for RS232 communication, giving you flexibility to avoid pin conflicts with other shields. Headers are included but require soldering.

Key Features

• DB9 RS232 Connector – Standard serial port for industrial and legacy devices
• MAX232 Level Shifter – Converts TTL to RS232 signal levels
• Selectable Serial Pins – Choose from D0–D7 for software serial
• Arduino Shield Form Factor – Stacks directly onto Arduino boards

Ideal For

• Connecting Arduino to industrial RS232 equipment
• Automation prototyping and control systems
• Interfacing with legacy serial peripherals

Package Contents

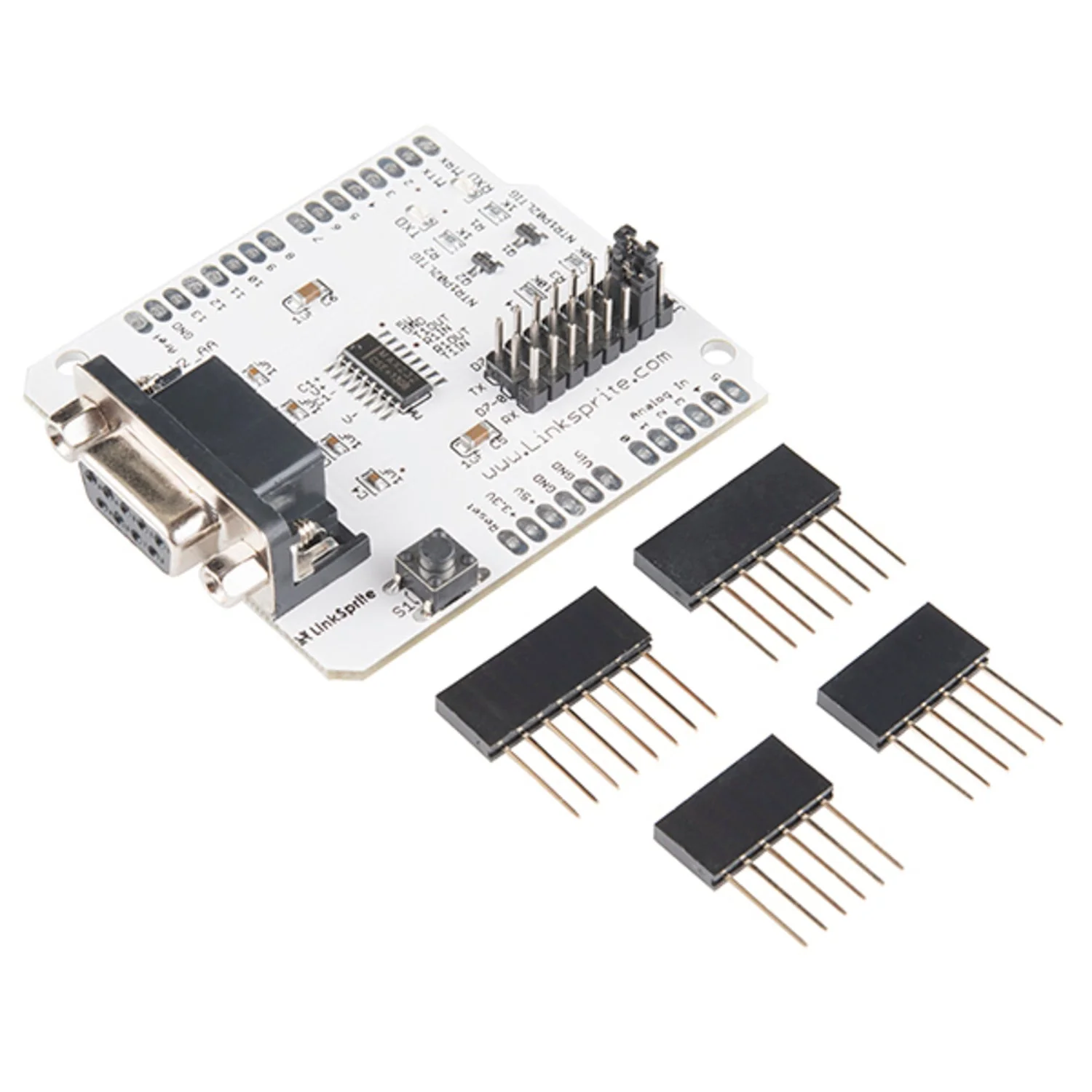

• 1× RS232 Shield V2
• 1× Set of stackable headers (unsoldered)

Resources

• Schematic (PDF)
• MAX232 Datasheet (PDF)
