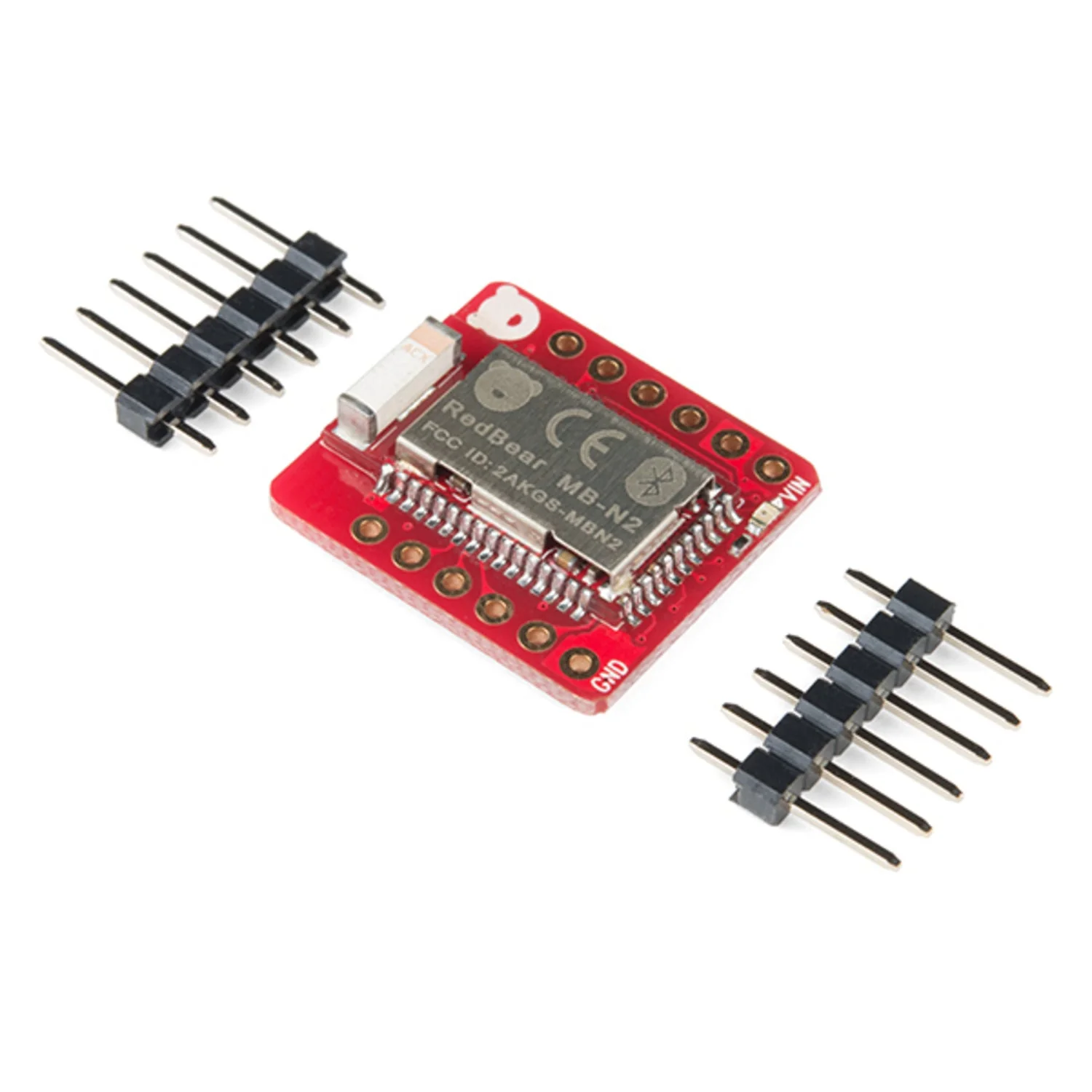

The BLE Nano v2 from RedBearLab is one of the smallest Bluetooth Low Energy development boards available. Built around the Nordic nRF52832 SoC — an ARM Cortex-M4F processor running at 64 MHz with ultra-low power consumption — it supports Bluetooth 4.2 and 5.0 for communication with iOS 7+, Android 4.3+, and Windows Phone 8.1 devices.

Operating at 1.8–3.6V, the BLE Nano v2 is ideal for rapid prototyping of BLE-enabled accessories and IoT devices. Its tiny form factor lets you embed wireless connectivity into space-constrained projects with minimal overhead.

Key Features

• Nordic nRF52832 – ARM Cortex-M4F SoC at 64 MHz with BLE radio
• Bluetooth 4.2/5.0 LE – Compatible with iOS, Android, and Windows Phone
• Ultra-Compact – One of the smallest BLE dev boards available
• Low Power – Optimised for battery-powered and IoT applications
• 1.8–3.6V Operation – Works with a wide range of electronic components
• Header-Ready – Includes two 1×6 male headers (unsoldered)

Ideal For

• Bluetooth Low Energy prototyping and IoT projects
• BLE-enabled accessories and wearables
• Space-constrained wireless applications
• Rapid prototyping of connected devices

Package Contents

• 1× RedBearLab BLE Nano v2
• 2× 1×6 Male Headers (unsoldered)
