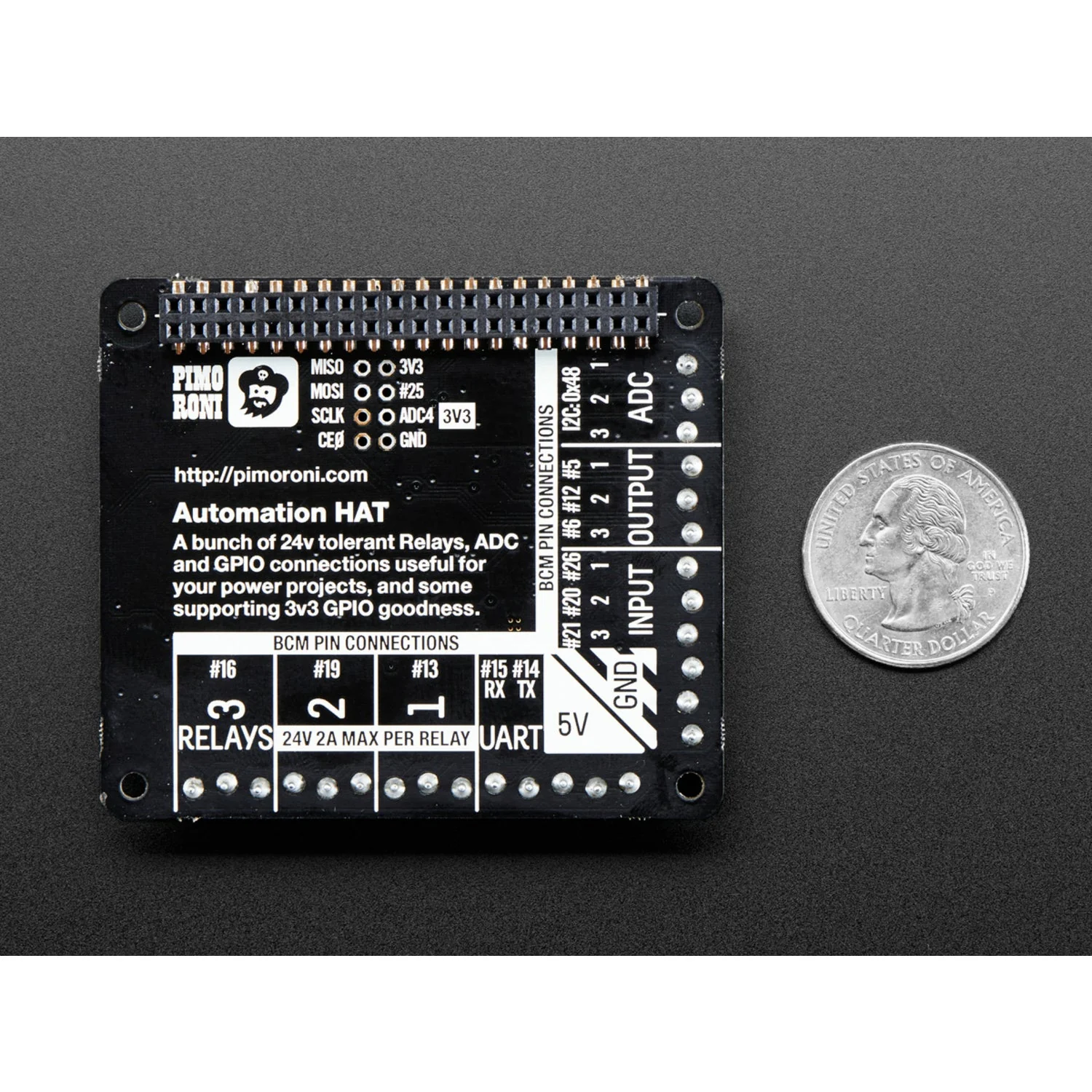

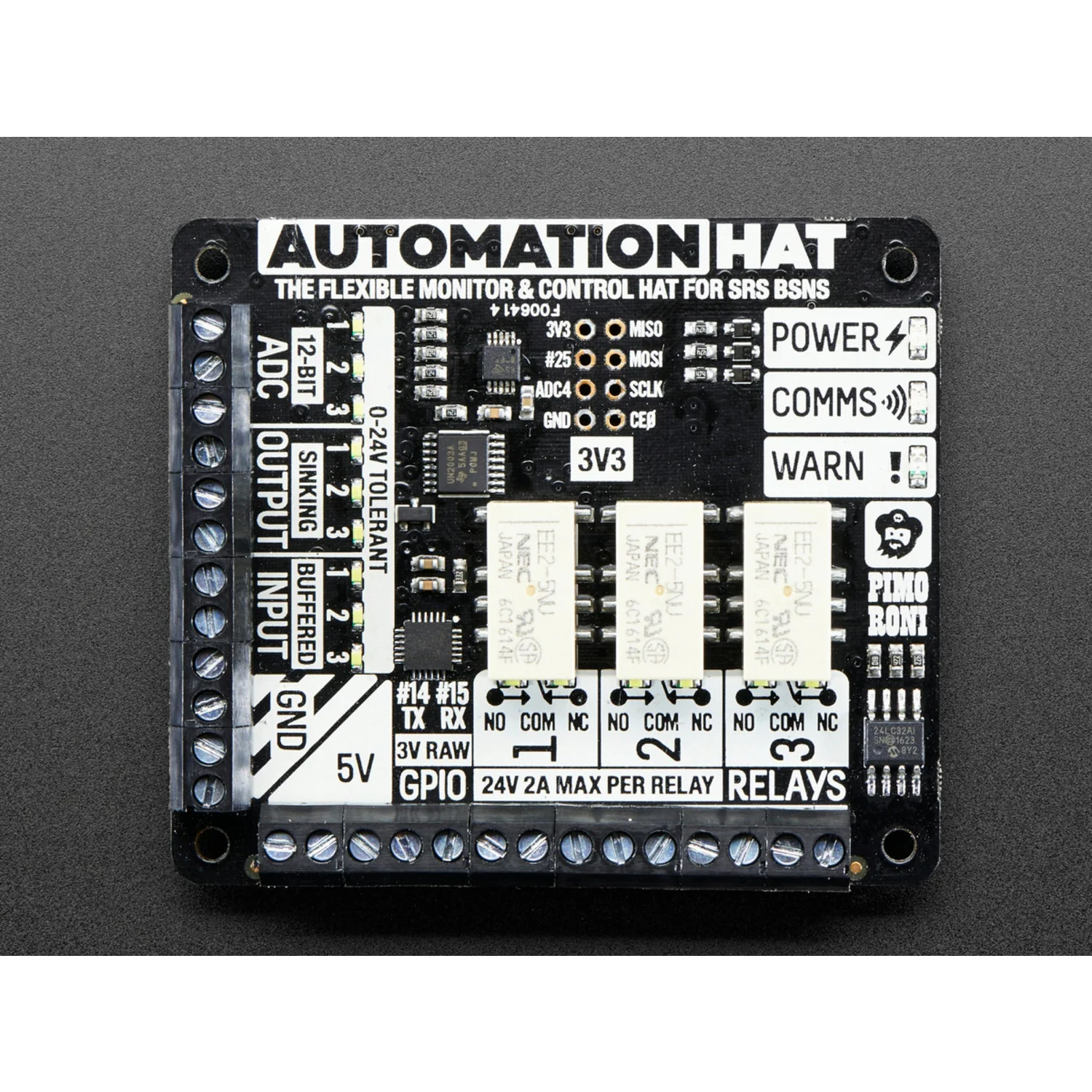

The Pimoroni Automation HAT is a versatile home automation and industrial control board for the Raspberry Pi. With relays, analogue channels, powered outputs, and buffered inputs — all 24V tolerant — it provides a comprehensive I/O platform for monitoring and controlling real-world devices.

Each channel has an indicator LED for at-a-glance status monitoring, and the analogue channels feature dimming LEDs that reflect the current sensing value. Comes fully assembled with 3.5mm screw terminals for easy wiring.

Key Features

• 3 Relays – 24V @ 2A with NC and NO terminals
• 3 Analogue Inputs – 12-bit ADC, 0–24V range
• 1 Analogue Input – 12-bit ADC, 0–3.3V range
• 3 Buffered Inputs – 24V tolerant
• 3 Sinking Outputs – 24V tolerant
• 15 Channel LEDs – Visual status for every channel
• SPI Interface – With HAT EEPROM
• Extra GPIO – TX (#14), RX (#15), #25
• Screw Terminals – 3.5mm for secure, solderless connections

Ideal For

• Home automation systems
• Hydroponics and environmental monitoring
• Light industrial control
• Sensor data acquisition

Compatibility

All Raspberry Pi models with the 40-pin GPIO header (Pi 5, Pi 4, Pi 3, Pi 2, B+, A+, Zero).

Package Contents

• 1× Pimoroni Automation HAT (fully assembled)
