High Brightness Orange Electroluminescent (EL) Wire - 2.5 meters [High brightness, long life]

Product image 1
1 / 4

High Brightness Orange Electroluminescent (EL) Wire - 2.5 meters [High brightness, long life]

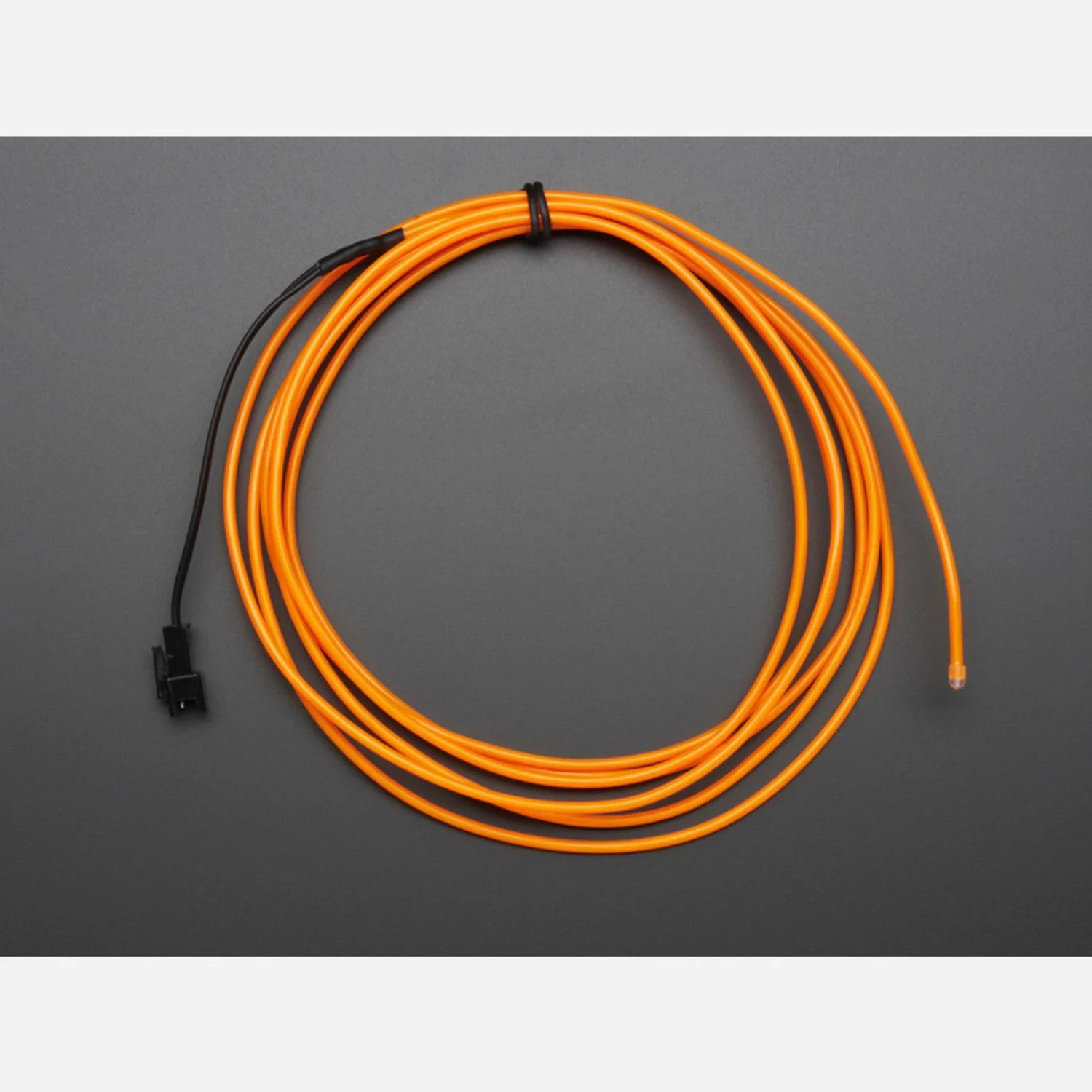

A 2.5 m length of high-brightness orange electroluminescent (EL) wire, pre-cut and pre-soldered with a standard quick-connect plug. This 2.6 mm diameter wire uses the latest phosphor technology to produce twice the brightness of standard 2.3 mm EL wire, emitting 70 cd/m² at 1.5 kHz / 90 V with a half-life of 3000 hours.

EL wire produces a smooth, even glow similar to thin neon. It is highly flexible, holds its shape when bent, and draws only about 10 mA per metre — much less power than LEDs for accent lighting effects.

Key Features

  • High Brightness – 70 cd/m², twice as bright as standard EL wire
  • 2.5 m Pre-Cut Length – Pre-soldered with quick-connect plug
  • 2.6 mm Diameter – Flexible, holds shape when bent
  • Low Power – ~10 mA per metre
  • 3000-Hour Half-Life – Long-lasting brightness
  • Capacitance: 11 nF/m
Warning: An AC inverter (~100 V at 2000 Hz) is required to power EL wire and is not included. EL wire operates at high voltage — take care when handling connections.
Note: EL wire, EL tape, and EL panel are made with different processes — colour and brightness will not match exactly between product types. This wire is not rated for continuous outdoor UV exposure.

Ideal For

  • Costumes and cosplay
  • Accent and decorative lighting
  • Safety vests and visibility applications
  • Bicycle, vehicle, and home decoration

Package Contents

  • 1× Orange high-brightness EL wire (2.5 m, pre-soldered with quick-connect)

Resources

$8.75

Original: $29.17

-70%
High Brightness Orange Electroluminescent (EL) Wire - 2.5 meters [High brightness, long life]—

$29.17

$8.75

Product Information

Shipping & Returns

Description

A 2.5 m length of high-brightness orange electroluminescent (EL) wire, pre-cut and pre-soldered with a standard quick-connect plug. This 2.6 mm diameter wire uses the latest phosphor technology to produce twice the brightness of standard 2.3 mm EL wire, emitting 70 cd/m² at 1.5 kHz / 90 V with a half-life of 3000 hours.

EL wire produces a smooth, even glow similar to thin neon. It is highly flexible, holds its shape when bent, and draws only about 10 mA per metre — much less power than LEDs for accent lighting effects.

Key Features

  • High Brightness – 70 cd/m², twice as bright as standard EL wire
  • 2.5 m Pre-Cut Length – Pre-soldered with quick-connect plug
  • 2.6 mm Diameter – Flexible, holds shape when bent
  • Low Power – ~10 mA per metre
  • 3000-Hour Half-Life – Long-lasting brightness
  • Capacitance: 11 nF/m
Warning: An AC inverter (~100 V at 2000 Hz) is required to power EL wire and is not included. EL wire operates at high voltage — take care when handling connections.
Note: EL wire, EL tape, and EL panel are made with different processes — colour and brightness will not match exactly between product types. This wire is not rated for continuous outdoor UV exposure.

Ideal For

  • Costumes and cosplay
  • Accent and decorative lighting
  • Safety vests and visibility applications
  • Bicycle, vehicle, and home decoration

Package Contents

  • 1× Orange high-brightness EL wire (2.5 m, pre-soldered with quick-connect)

Resources
