The Gravity Analog UV Sensor V2 uses a GUVA-S12SD photodiode to detect ultraviolet radiation in the 200–370 nm (UV-A) wavelength range. It outputs a linear analogue voltage signal proportional to UV intensity, making it easy to read UV index values directly with an Arduino or other microcontroller.

Part of DFRobot's Gravity series, the sensor connects via a standard 3-pin analogue cable for plug-and-play integration. Its compact size and fast response make it suitable for both indoor and outdoor UV monitoring applications.

Key Features

• GUVA-S12SD Photodiode – Detects UV-A radiation in the 200–370 nm range
• Linear Analogue Output – Voltage output proportional to UV intensity
• Fast Response – Quick measurement for real-time UV monitoring
• Gravity Interface – 3-pin analogue connector for plug-and-play use

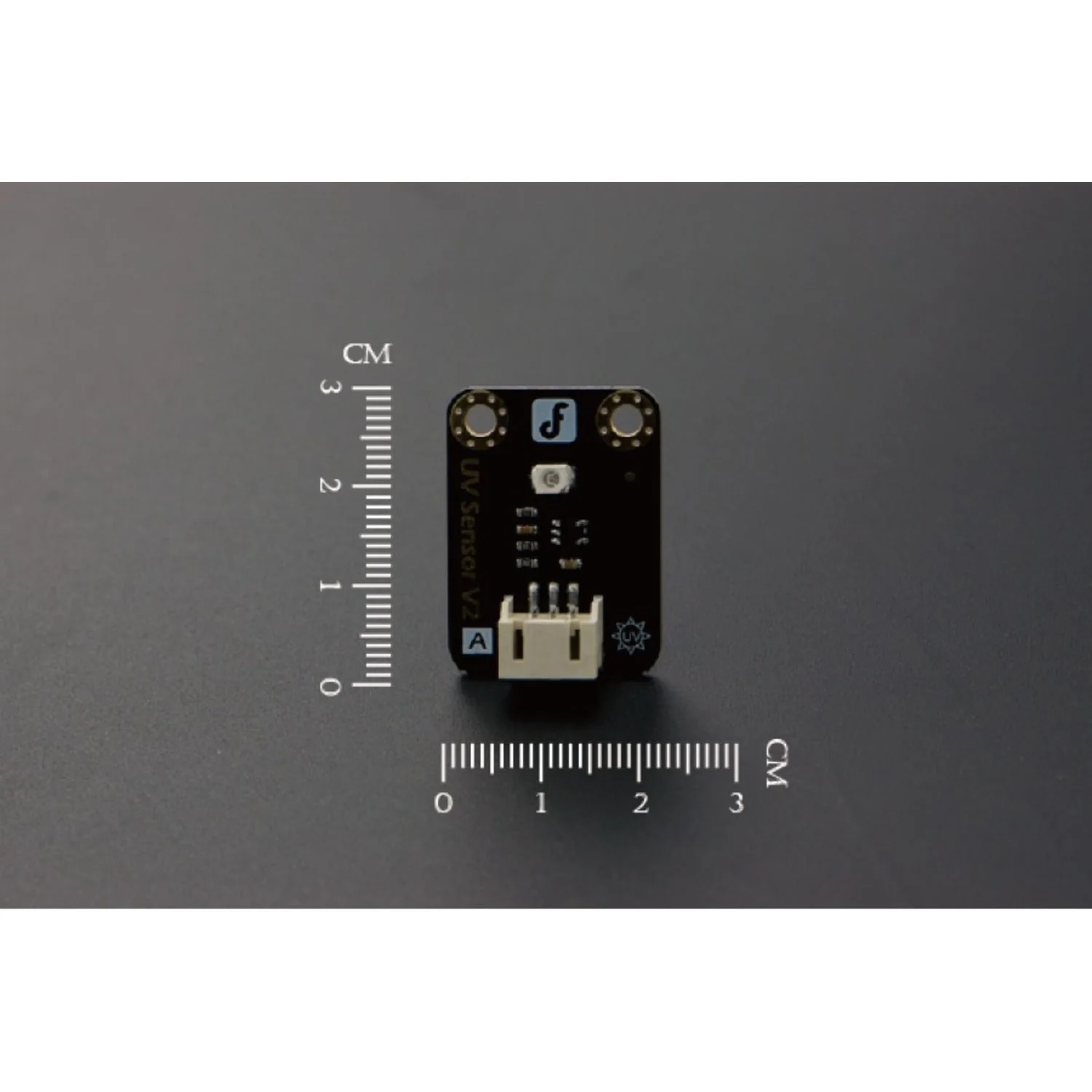

• Compact Size – Easy to install in projects and enclosures

Ideal For

• UV index monitoring stations
• UV-A lamp intensity measurement
• Plant growing environment monitoring
• Weather station and environmental sensing projects

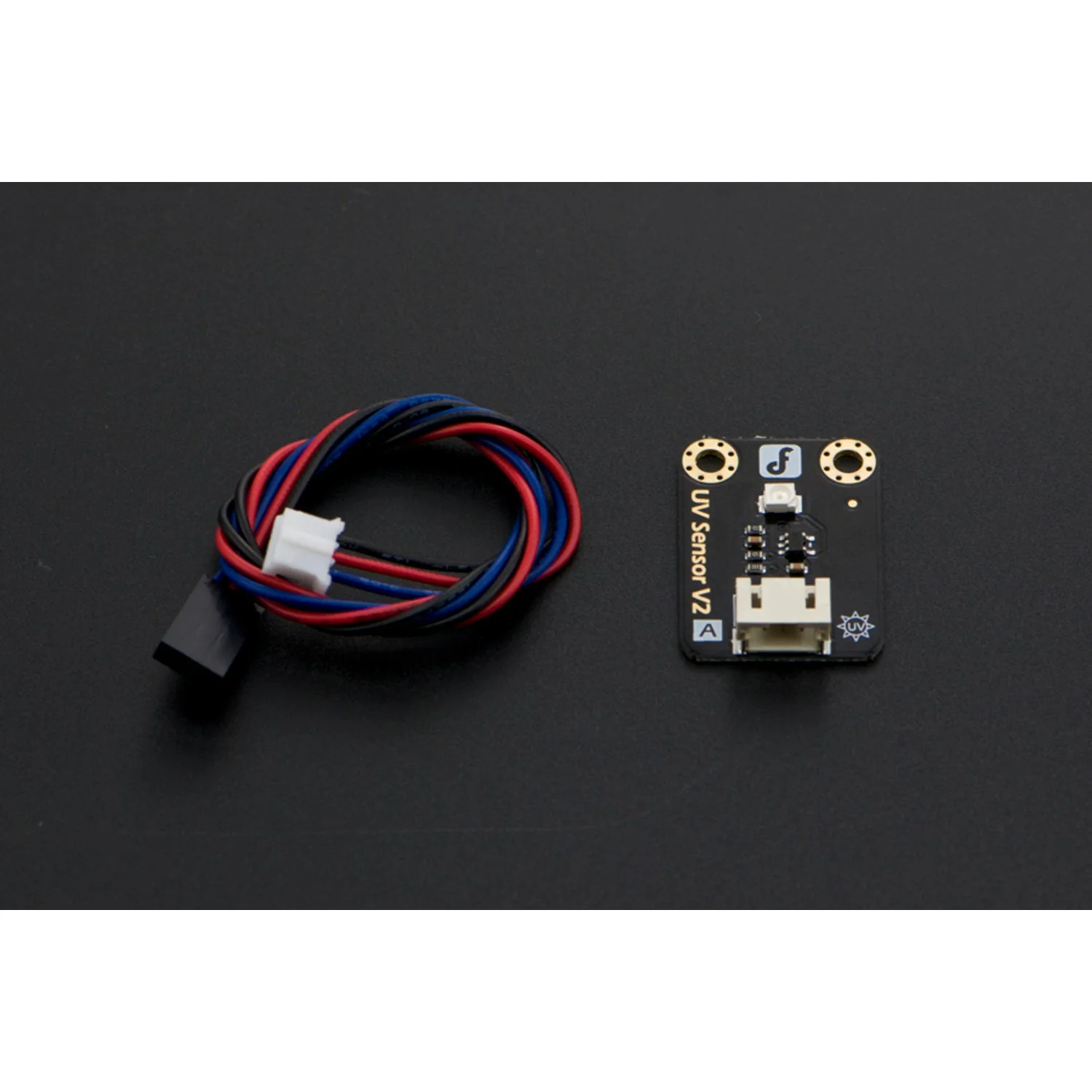

Package Contents

• 1× UV Sensor
• 1× Analogue Cable

Resources

• Wiki Documentation
• Schematic (PDF)
• GUVA-S12SD Datasheet (PDF)
• UV Sensor Application Guide (PDF)
• SGM8521 Datasheet (PDF)
