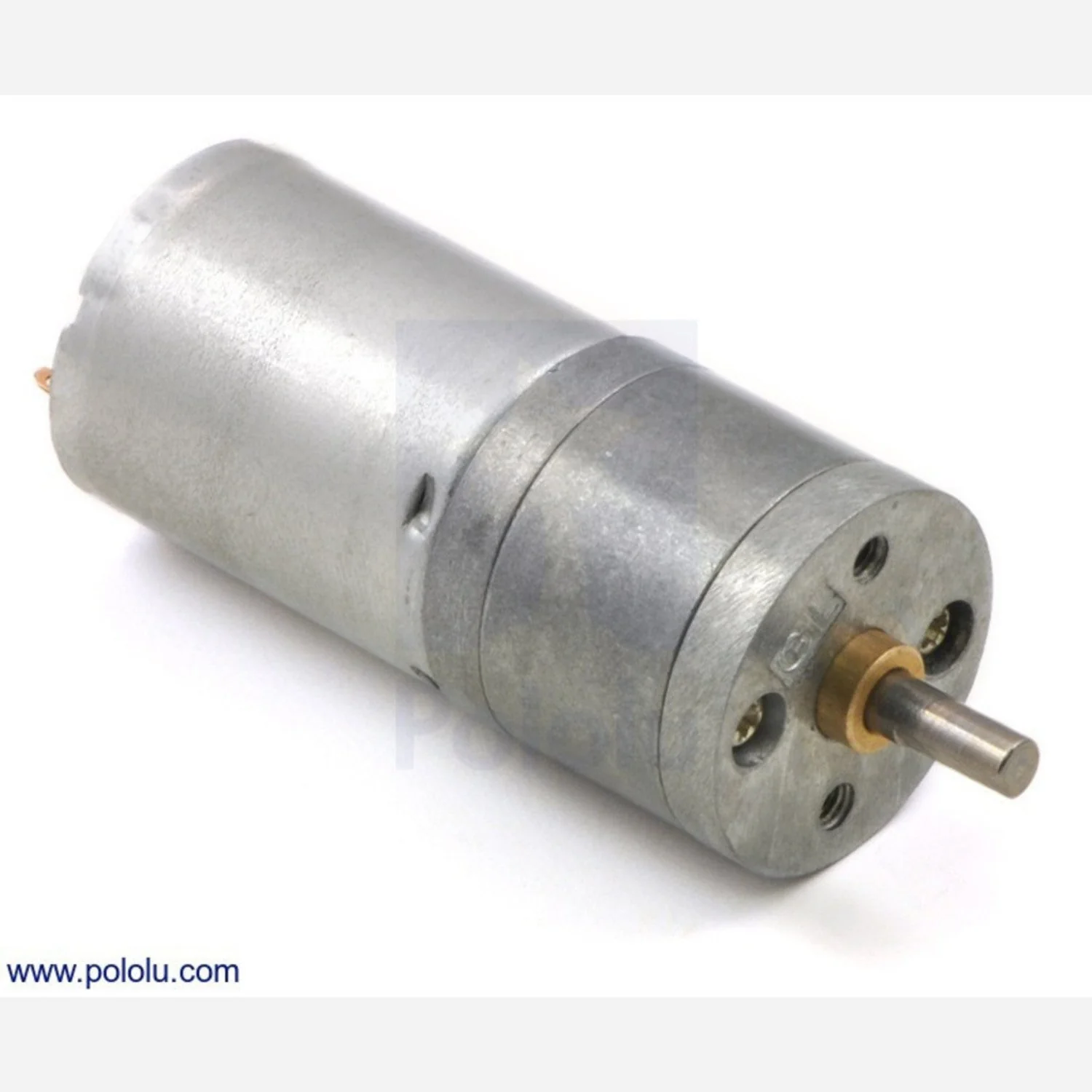

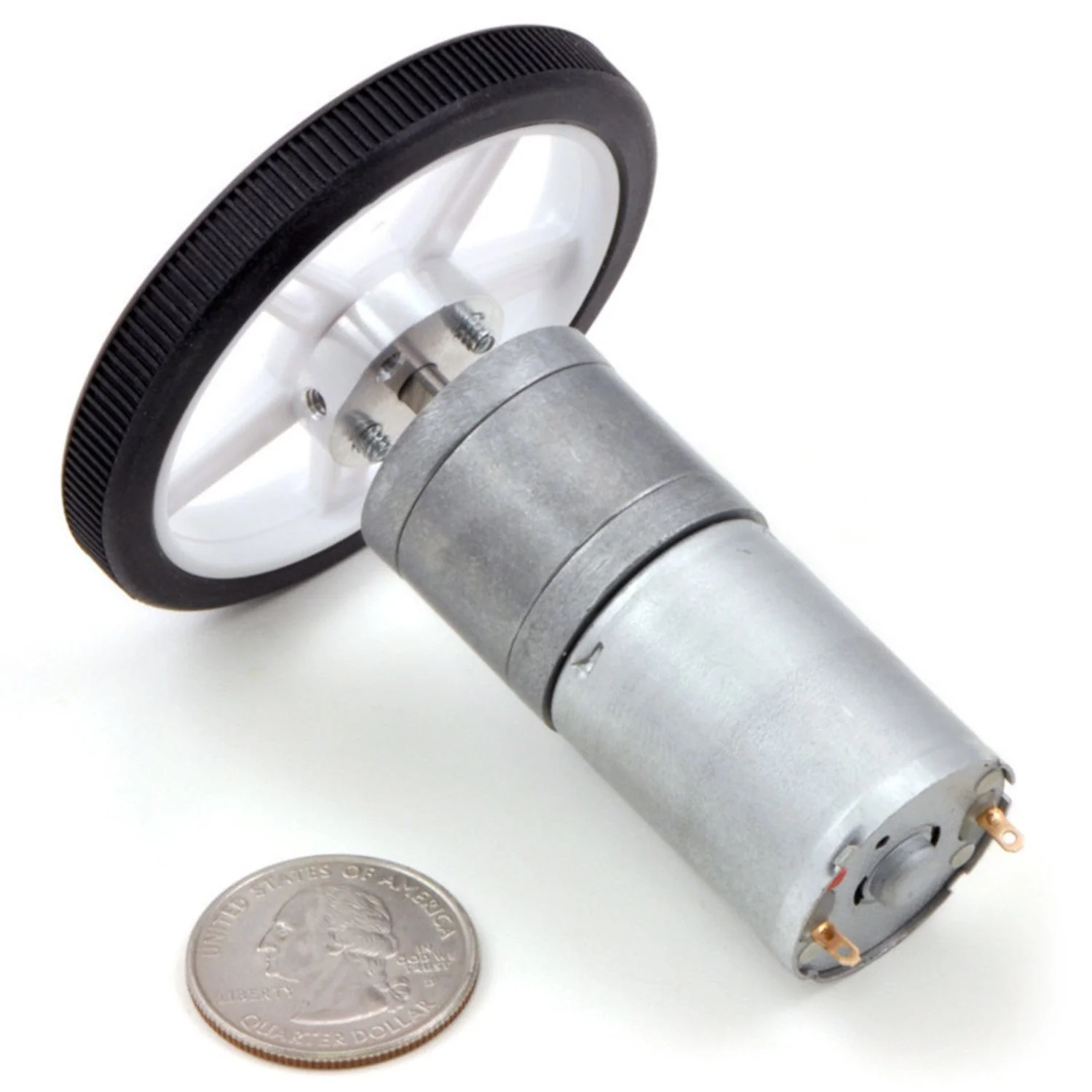

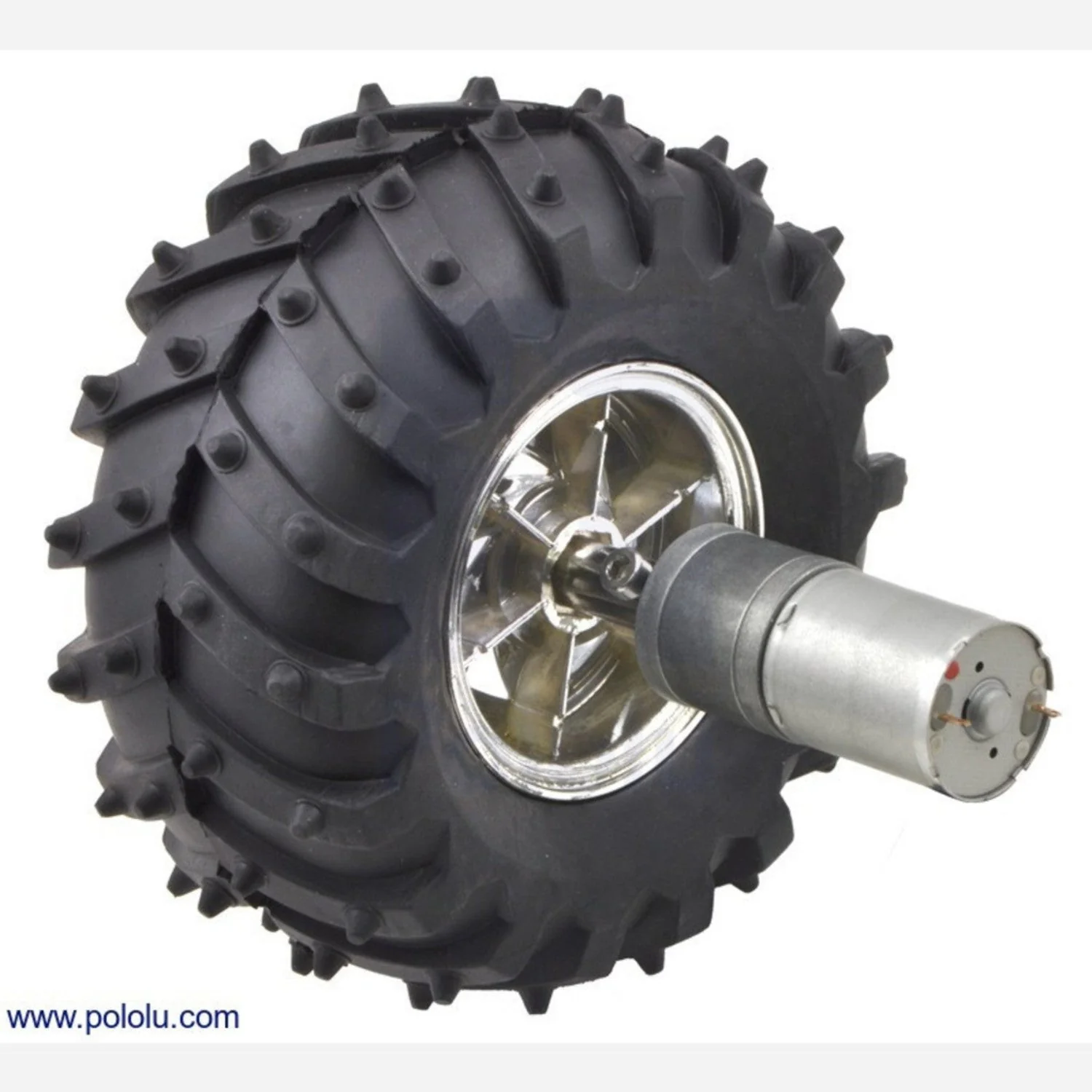

A high-power 6V brushed DC gearmotor with a 98.78:1 metal spur gearbox. The cylindrical motor body measures just under 25mm in diameter, and the D-shaped output shaft is 4mm in diameter, extending 12.5mm from the gearbox face plate. Also available with an integrated encoder for closed-loop control.

Specifications

• Gear Ratio – 98.78:1
• Voltage – 6V
• No-Load Speed – 99 RPM
• No-Load Current – 420mA
• Stall Torque – 15 kg·cm (210 oz·in)
• Stall Current – 6.0A
• Motor Diameter – ~25mm
• Output Shaft – 4mm D-shaped, 12.5mm length
• Gearbox – Metal spur gears
• Dimensions – 25D × 54L mm

Ideal For

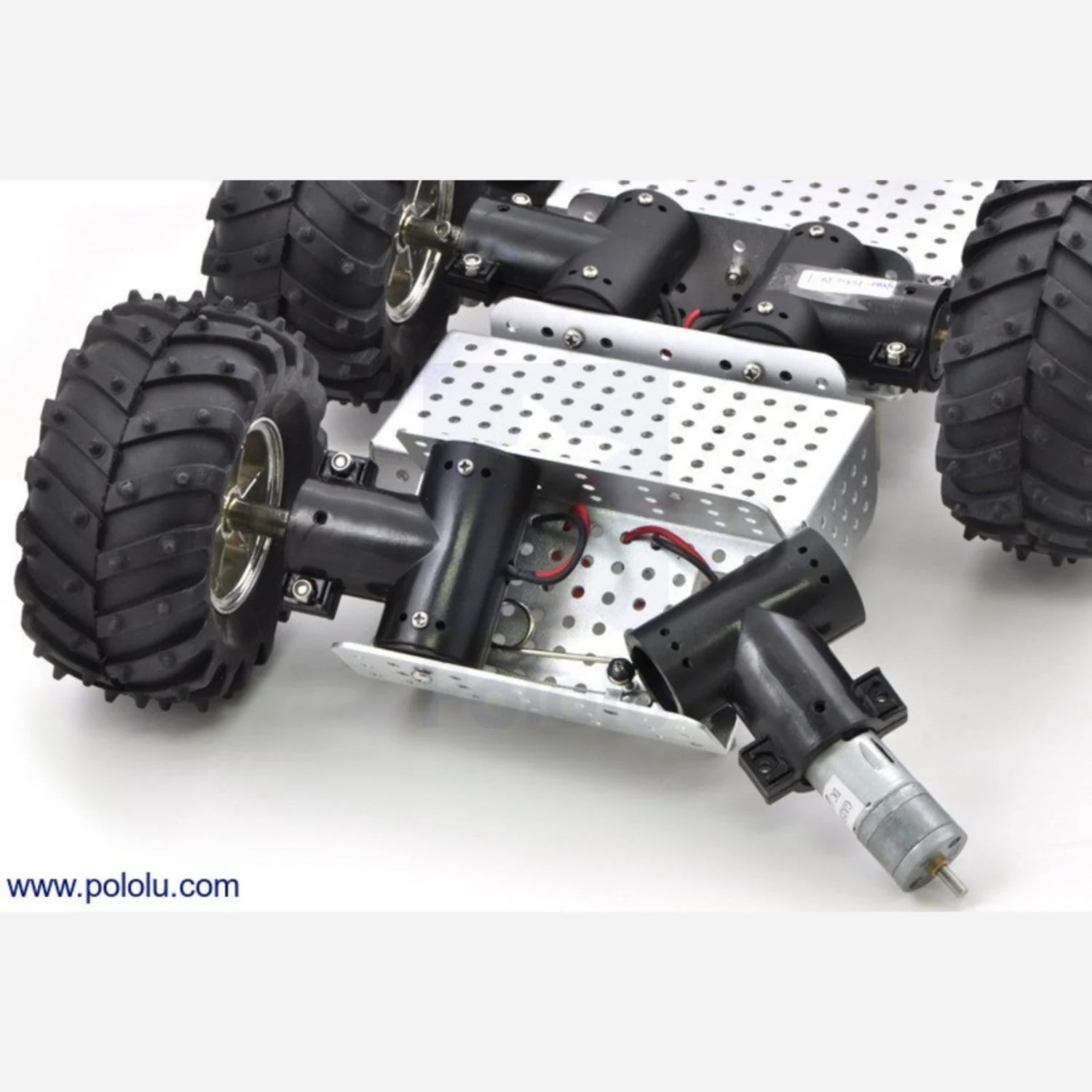

• Robotics drive systems
• Motorised mechanisms and actuators
• Projects requiring high torque in a compact form factor

Package Contents

• 1× 99:1 Metal Gearmotor 25D×54L mm HP 6V
